Question 3 1 pts A 293-12 lossless air transmission line is connected to a complex load composed of a 618-S2 resistor in

[answerhappygod]

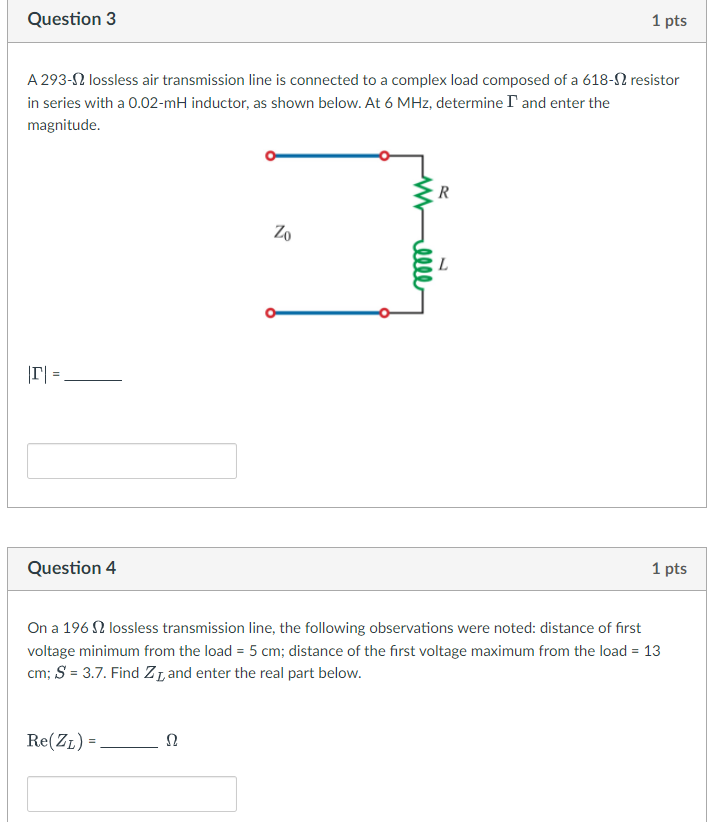

Question 3 1 Pts A 293 12 Lossless Air Transmission Line Is Connected To A Complex Load Composed Of A 618 S2 Resistor In 1 (50.44 KiB) Viewed 15 times

Question 3 1 pts A 293-12 lossless air transmission line is connected to a complex load composed of a 618-S2 resistor in series with a 0.02-mH inductor, as shown below. At 6 MHz, determine I and enter the magnitude. R Zo will L ! T = = Question 4 1 pts On a 1962 lossless transmission line, the following observations were noted: distance of first voltage minimum from the load = 5 cm; distance of the first voltage maximum from the load = 13 cm; S = 3.7. Find 2 L and enter the real part below. Re(ZL) - 12
