Question 5 1 pts A lossless 34-12 transmission line is terminated in a load with ZL= (66 + j26) 12. Use the Smith chart

[answerhappygod]

Question 5 1 Pts A Lossless 34 12 Transmission Line Is Terminated In A Load With Zl 66 J26 12 Use The Smith Chart 1 (44.24 KiB) Viewed 17 times

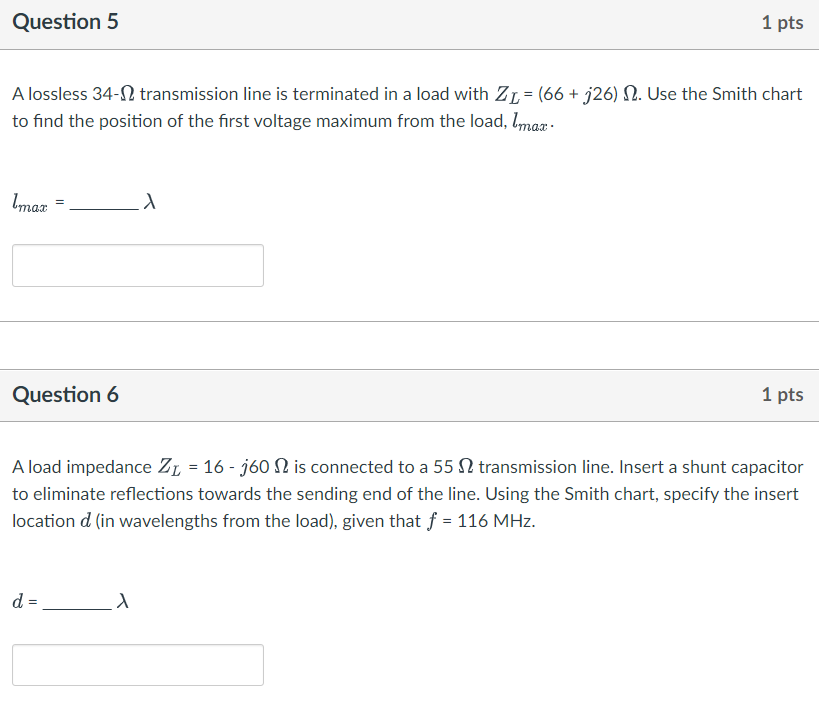

Question 5 1 pts A lossless 34-12 transmission line is terminated in a load with ZL= (66 + j26) 12. Use the Smith chart to find the position of the first voltage maximum from the load, Imax- Imax = Question 6 1 pts A load impedance Z1 = 16-260 N is connected to a 55 12 transmission line. Insert a shunt capacitor to eliminate reflections towards the sending end of the line. Using the Smith chart, specify the insert location d (in wavelengths from the load), given that f = 116 MHz. d II =
