Design the electrical ladder diagram and PLC ladder diagram to control the four lamps shown below. The four lamps will t

[answerhappygod]

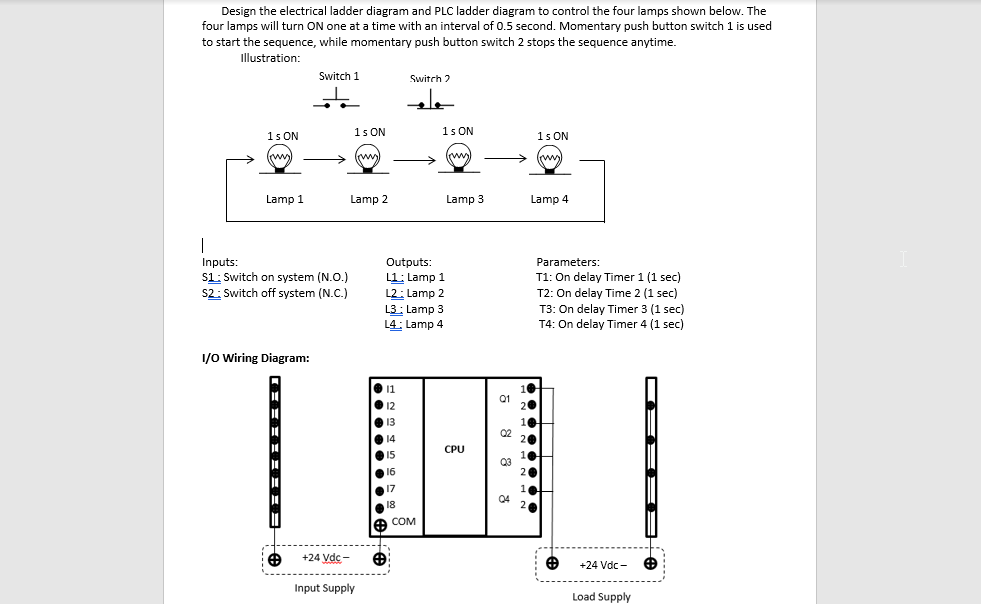

Design The Electrical Ladder Diagram And Plc Ladder Diagram To Control The Four Lamps Shown Below The Four Lamps Will T 1 (46.8 KiB) Viewed 25 times

Design the electrical ladder diagram and PLC ladder diagram to control the four lamps shown below. The four lamps will turn ON one at a time with an interval of 0.5 second. Momentary push button switch 1 is used to start the sequence, while momentary push button switch 2 stops the sequence anytime. illustration: Switch 1 Switch 2 علم 1 S ON 1 S ON 1 S ON 1 SON liwy liwa w low Lamp 1 Lamp 2 Lamp 3 Lamp 4 4 | Inputs: S1: Switch on system (N.O.) S2: Switch off system (N.C.) Outputs: L1: Lamp 1 L2: Lamp 2 L3: Lamp 3 L4: Lamp 4 Parameters: T1: On delay Timer 1(1 sec) T2: On delay Time 2 (1 sec) T3: On delay Timer 3 (1 sec) T4: On delay Timer 4 (1 sec) 1/0 Wiring Diagram: 10 02 CPU OPERERER3340 11 12 13 14 15 16 17 18 A COM 8 8 8 9 PPPP 04 +24 Vdc - e +24 Vdc- Input Supply Load Supply
