4. Draw a neat picture of the zener diode on which you have performed the experiment and indicate the anode and cathode

Post by answerhappygod »

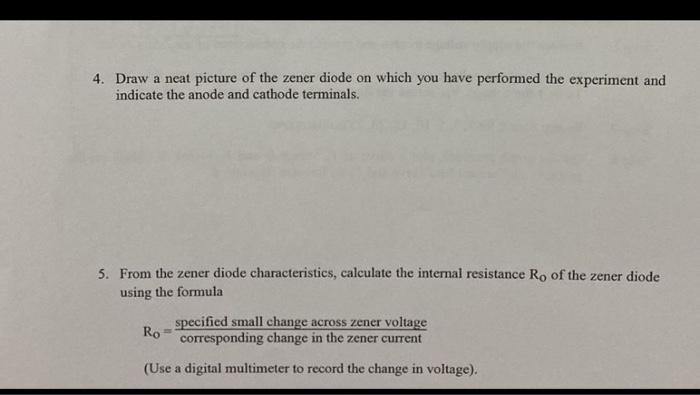

4 Draw A Neat Picture Of The Zener Diode On Which You Have Performed The Experiment And Indicate The Anode And Cathode 1
4 Draw A Neat Picture Of The Zener Diode On Which You Have Performed The Experiment And Indicate The Anode And Cathode 1 (26.71 KiB) Viewed 15 times
4. Draw a neat picture of the zener diode on which you have performed the experiment and indicate the anode and cathode terminals. 5. From the zener diode characteristics, calculate the internal resistance Ro of the zener diode using the formula Ro specified small change across zener voltage corresponding change in the zener current (Use a digital multimeter to record the change in voltage).
