1. The logic circuits whose outputs at any instant of time depends on the present input and the past outputs are called

[answerhappygod]

1 The Logic Circuits Whose Outputs At Any Instant Of Time Depends On The Present Input And The Past Outputs Are Called 1 (835.31 KiB) Viewed 15 times

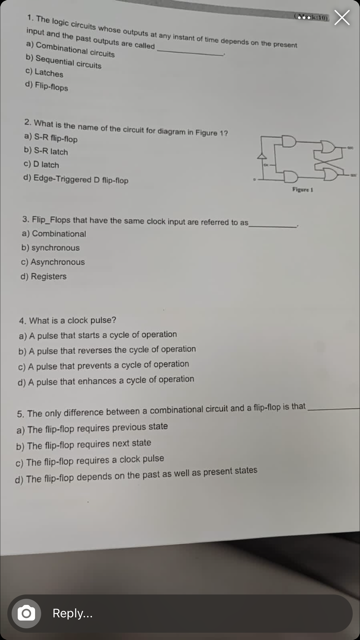

1. The logic circuits whose outputs at any instant of time depends on the present input and the past outputs are called a) Combinational circuits b) Sequential circuits c) Latches d) Flip flops 2. What is the name of the circuit for diagram in Figure 17 a) S-Rip-flop b) S-R latch c) Dlatch d) Edge-Triggered D flip-flop Pigere 3. Flip Flops that have the same clock input are referred to as a) Combinational b) synchronous c) Asynchronous d) Registers 4. What is a clock pulse? a) A pulse that starts a cycle of operation b) A pulse that reverses the cycle of operation c) A pulse that prevents a cycle of operation d) A pulse that enhances a cycle of operation 5. The only difference between a combinational circuit and a flip-flop is that a) The flip-flop requires previous state b) The flip-flop requires next state c) The flip-flop requires a clock pulse d) The flip-flop depends on the past as well as present states O Reply...
