II. SUMMING AMPILFIER CIRCUIT R 1 R5 10к R3 JOK 5K GV R210K 01 R4 IOK U2 Out Vin III. DIFFERENTIAL AMPLIFIER CIRCUIT R3

Post by answerhappygod »

1
1 (70.39 KiB) Viewed 10 times

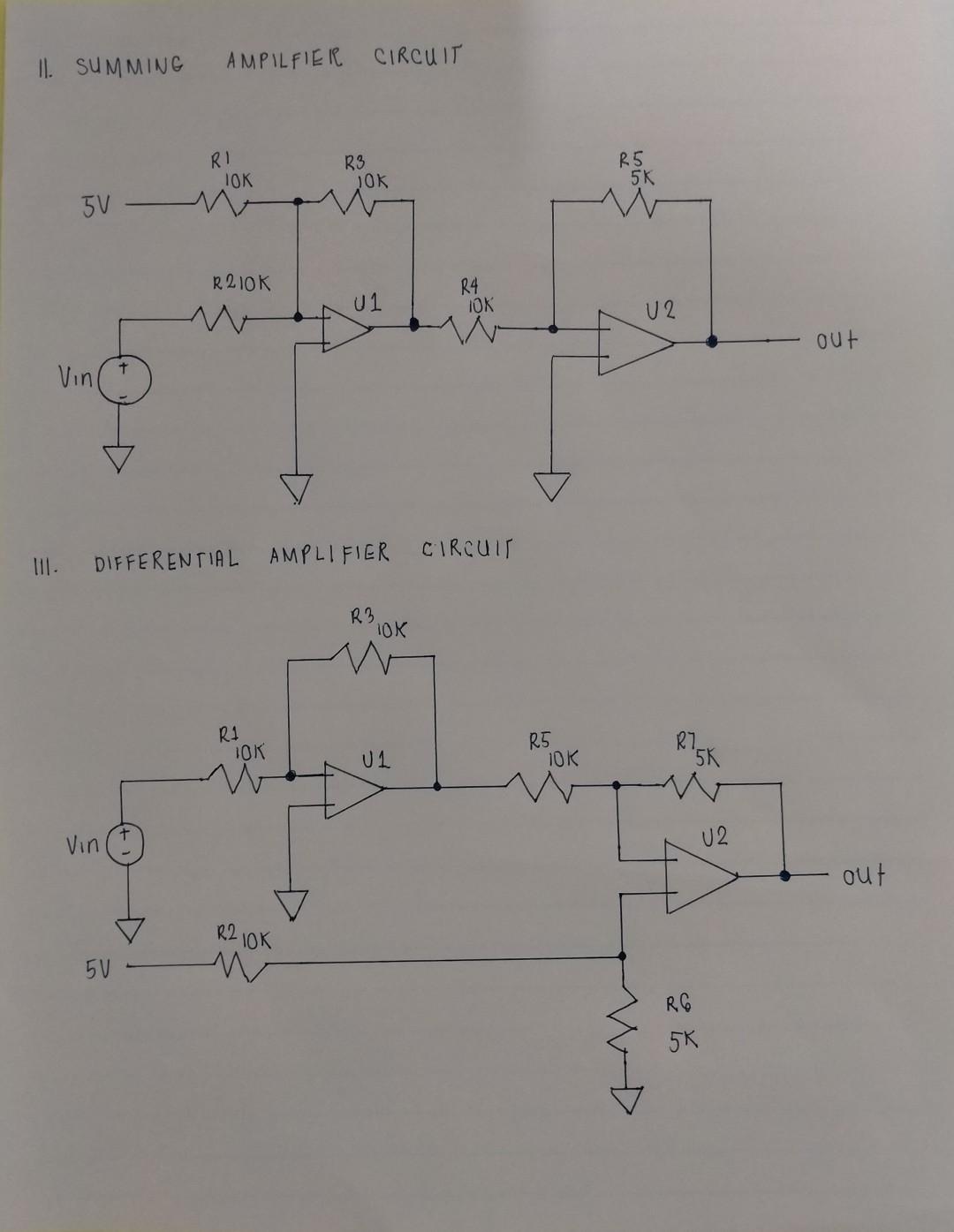

please help me answer these. Write only the mathematical representation for the following circuit. Appreciate your answer. thank you in advance.
II. SUMMING AMPILFIER CIRCUIT R 1 R5 10к R3 JOK 5K GV R210K 01 R4 IOK U2 Out Vin III. DIFFERENTIAL AMPLIFIER CIRCUIT R3 10K R1 10K U1 R5 10K 5K V Vin U2 out R210k 5V R6 5K
