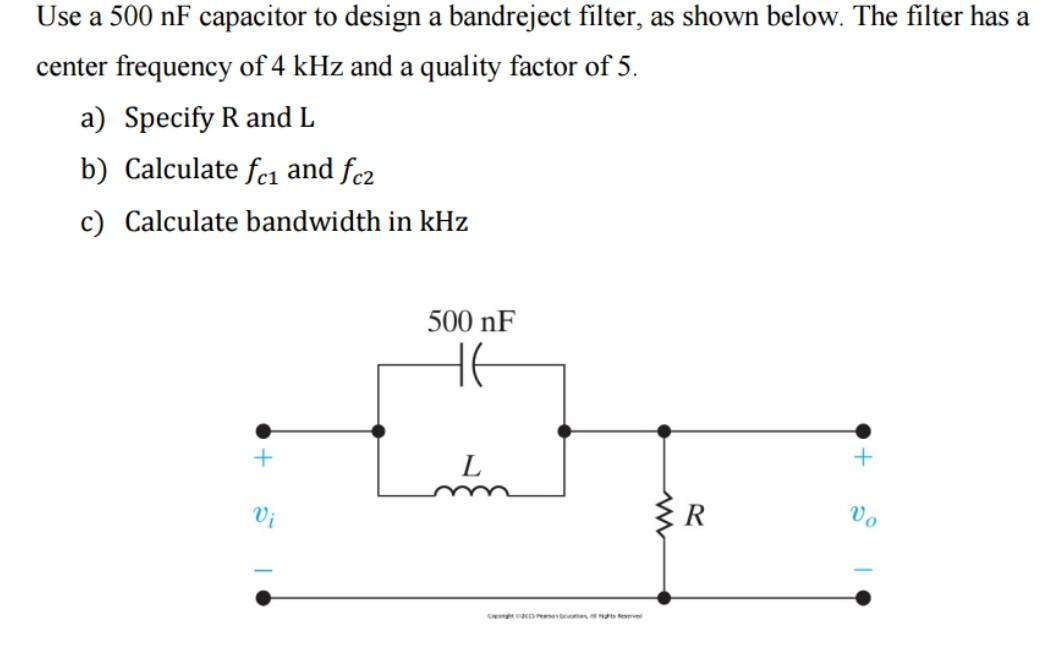

Use a 500 nF capacitor to design a bandreject filter, as shown below. The filter has a center frequency of 4 kHz and a quality factor of 5. a) Specify R and L b) Calculate fci and fcz c) Calculate bandwidth in kHz 500 nF HE L Vi R VO
