Question 9 Consider again the mechanical system of Fig 8. Assume the parameter values m = 1 kg, b = 2 Ns/m, and k = 5 N/

[answerhappygod]

Question 9 Consider Again The Mechanical System Of Fig 8 Assume The Parameter Values M 1 Kg B 2 Ns M And K 5 N 1 (144.02 KiB) Viewed 13 times

Question 9 Consider Again The Mechanical System Of Fig 8 Assume The Parameter Values M 1 Kg B 2 Ns M And K 5 N 2 (105.1 KiB) Viewed 13 times

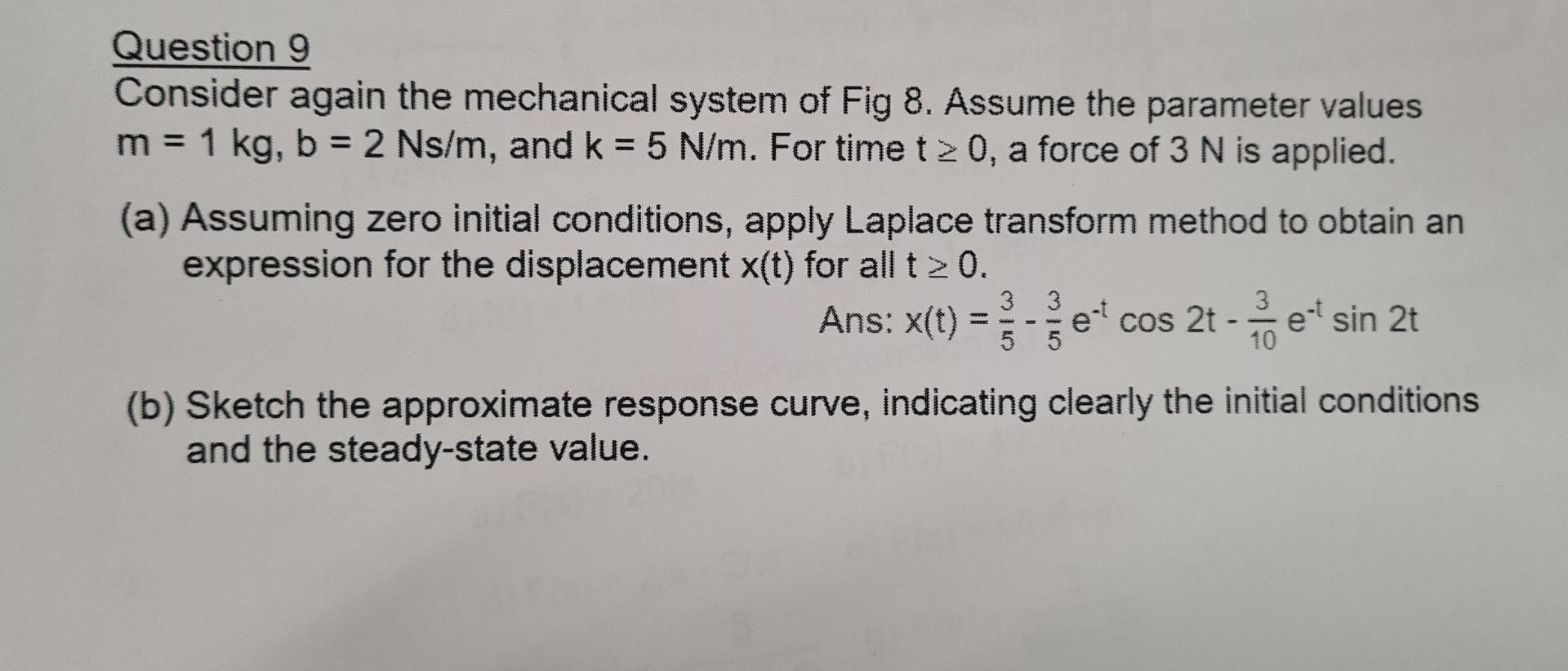

Question 9 Consider again the mechanical system of Fig 8. Assume the parameter values m = 1 kg, b = 2 Ns/m, and k = 5 N/m. For time t 20, a force of 3 N is applied. (a) Assuming zero initial conditions, apply Laplace transform method to obtain an expression for the displacement x(t) for all t2 0. 3 3 Ans: X(t) = det x el cos 2t - et sin 2 3 10 5 5 (b) Sketch the approximate response curve, indicating clearly the initial conditions and the steady-state value.

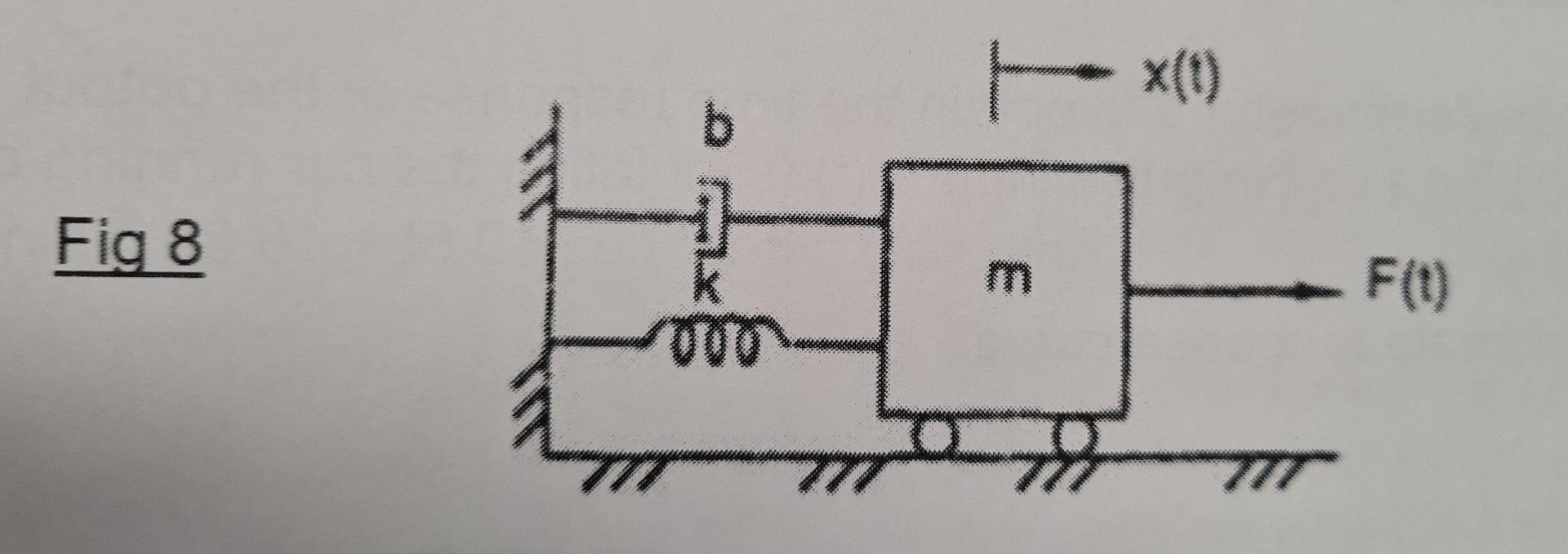

x(0) b Fig 8 m OUD M
