Pre Lab Consider The Following System Is Represented By The Block Diagram In Figurel Sketch The Root Locus Of The Syste 1 (27.15 KiB) Viewed 13 times

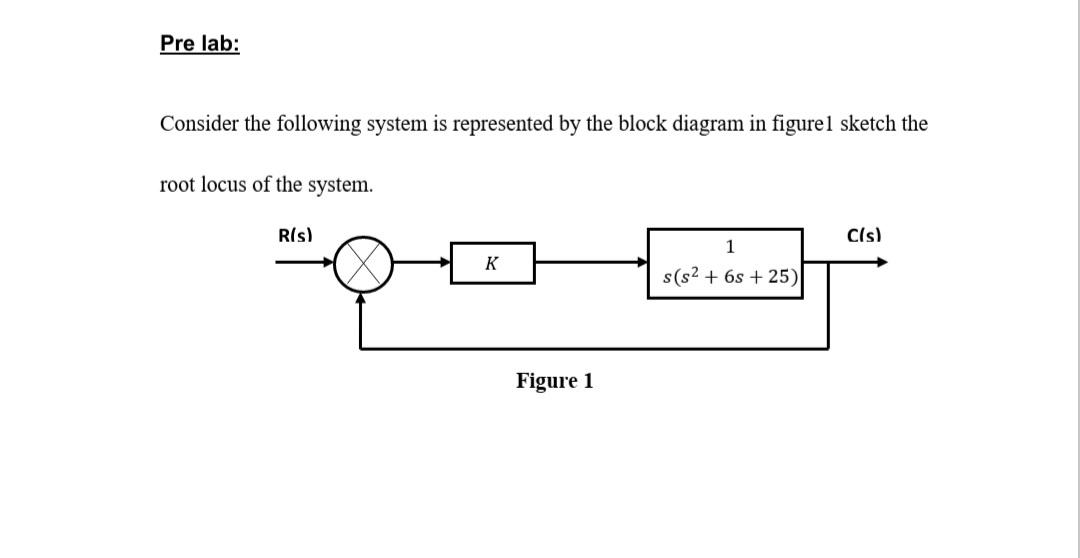

Pre lab: Consider the following system is represented by the block diagram in figurel sketch the root locus of the system. Ris) Cls) 1 K s(s2 +65 +25) Figure 1
Indicate on the plot the closed loop poles at k=30 - Mathematically calculate the closed loop poles at k=30
