Show all work. No credit will be given if work is not shown. Use your own paper as Points needed 3. 15 points For the tr

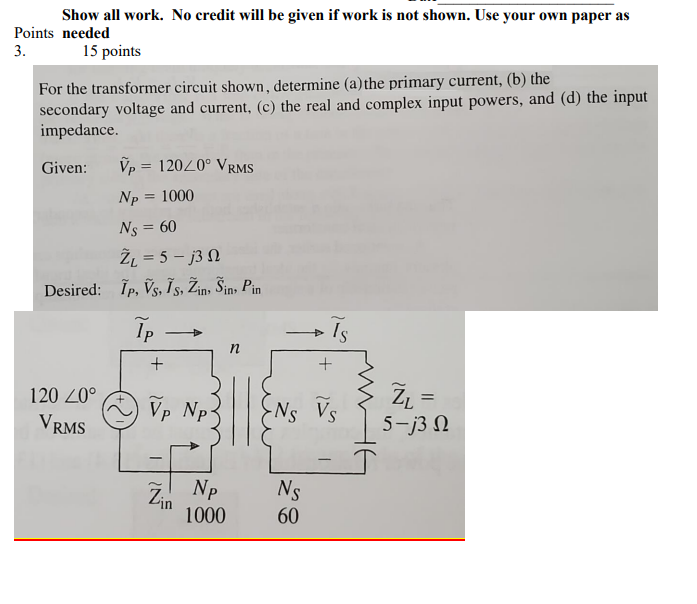

Show all work. No credit will be given if work is not shown. Use your own paper as Points needed 3. 15 points For the transformer circuit shown, determine (a) the primary current, (b) the secondary voltage and current, (c) the real and complex input powers, and (d) the input impedance. Given: Vp = 12020° VRMS Np = 1000 Ns = 60 ŽL = 5 - j3 Desired: ſp, Vs, īs, žin, Šin, Pin יחוי Tp n + + 120 20° Vp Np Ns Vs ŽL= 5-j3 Ω VRMS Ne in Ns 60 1000
