Question 2 (10 marks) For the circuit shown in Figure Q2, a capacitor C = 8x10°F, two resistors R3 = 4 k12. and R1 = (2+

[answerhappygod]

Question 2 10 Marks For The Circuit Shown In Figure Q2 A Capacitor C 8x10 F Two Resistors R3 4 K12 And R1 2 1 (27.6 KiB) Viewed 10 times

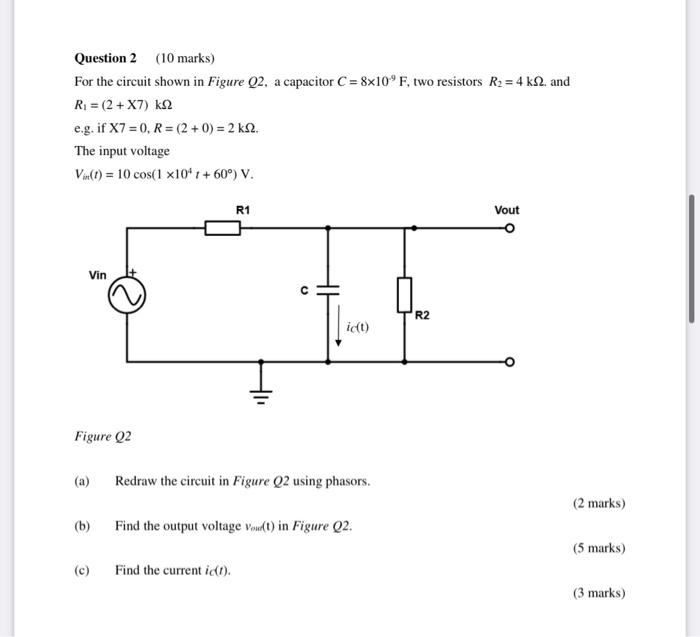

Question 2 (10 marks) For the circuit shown in Figure Q2, a capacitor C = 8x10°F, two resistors R3 = 4 k12. and R1 = (2+X7) k2 e.g. if X7 = 0, R = (2+0) = 2 k12. The input voltage V. () = 10 cos(1 x10*1+ 1 +60°) V. R1 Vout Vin C R2 ict) Figure Q2 Redraw the circuit in Figure Q2 using phasors. (2 marks) (b) Find the output voltage voudt) in Figure Q2. (5 marks) (c) ( Find the current ido). (3 marks)
