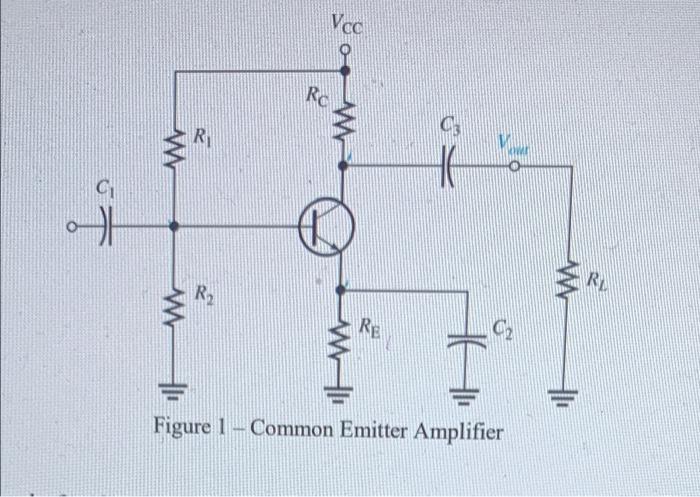

- Vcc Rc C3 R O M Ra R2 Re Figure 1 Common Emitter Amplifier Problem Statement Design A Common Emitter Amplifier 1 (64.08 KiB) Viewed 12 times
- Vcc Rc C3 R O M Ra R2 Re Figure 1 Common Emitter Amplifier Problem Statement Design A Common Emitter Amplifier 2 (68.87 KiB) Viewed 12 times

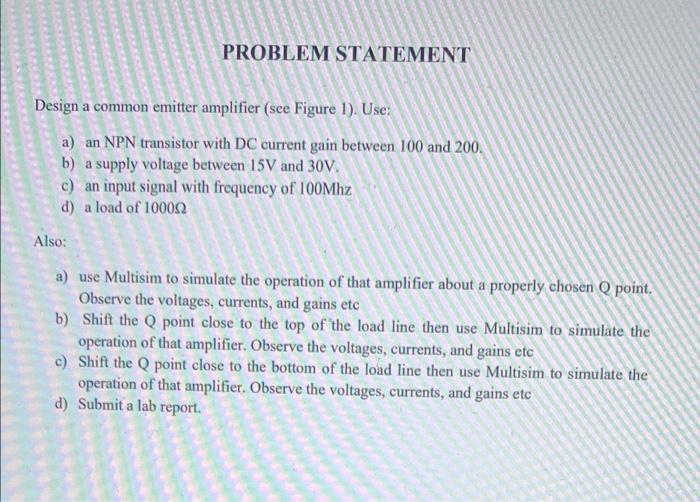

PROBLEM STATEMENT Design a common emitter amplifier (see Figure 1). Use: a) an NPN transistor with DC current gain between 100 and 200. b) a supply voltage between 15V and 30V. c) an input signal with frequency of 100Mhz d) a load of 100052 Also: a) use Multisim to simulate the operation of that amplifier about a properly chosen Q point. Observe the voltages, currents, and gains etc b) Shift the Q point close to the top of the load line then use Multisim to simulate the operation of that amplifier. Observe the voltages, currents, and gains etc c) Shift the point close to the bottom of the load line then use Multisim to simulate the operation of that amplifier. Observe the voltages, currents, and gains etc d) Submit a lab report.
