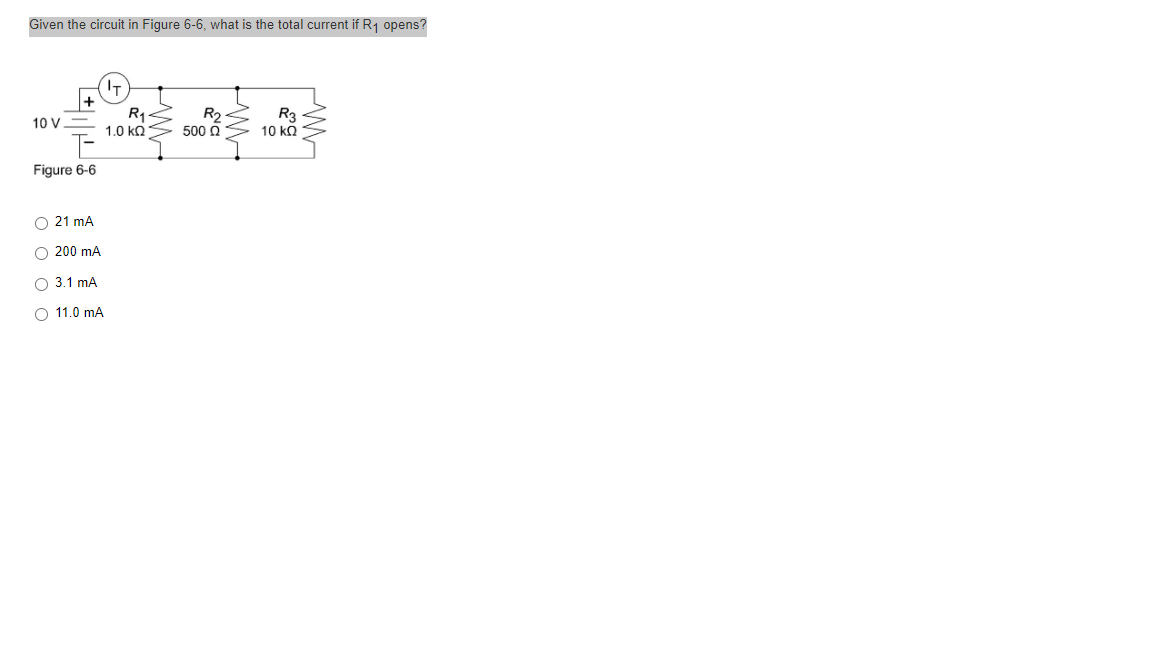

Given the circuit in Figure 6-6, what is the total current if R1 opens? IT H 10 V R1 1.Ο ΚΩ R2 500 R3 10 ΚΩ w Figure 6-6
