KIRCHHOFF'S LAWS Compose the voltage equations. Retain the signs generated by the tracing directions. j10ΘΩ m 11 -j500 1

Post by answerhappygod »

1
1 (150.83 KiB) Viewed 10 times
**4 decimals if possible**
use 60Hz, unless specified.

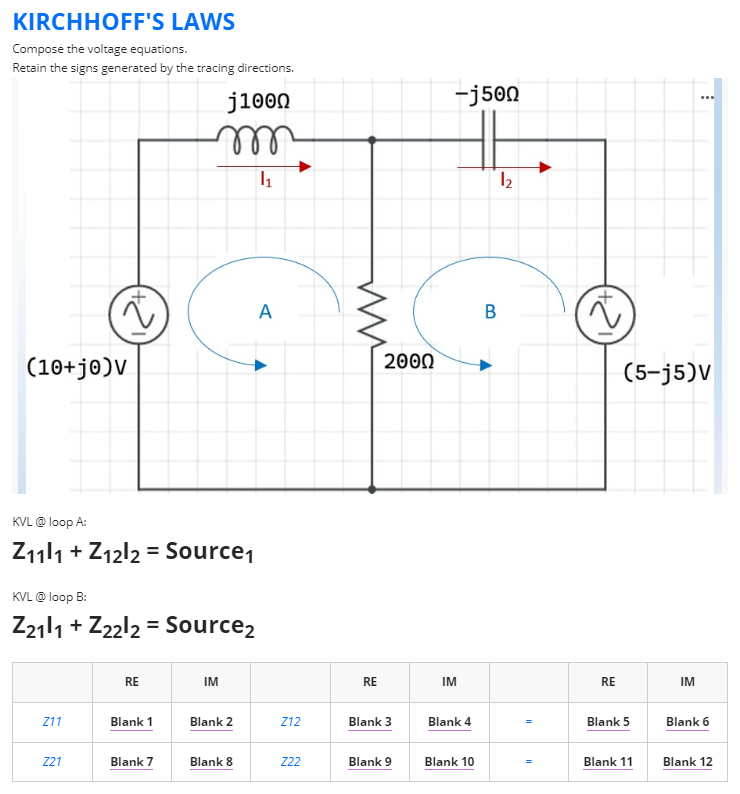

KIRCHHOFF'S LAWS Compose the voltage equations. Retain the signs generated by the tracing directions. j10ΘΩ m 11 -j500 12 T A B T (10+jov A 200Ω (5-j5) KVL @loop A: Z1111 + Z1212 = Source KVL @loop B: Z2111 + Z22/2 = Source2 RE IM RE IM RE IM Z11 Blank 1 Blank 2 Z12 Blank 3 Blank 4 Blank 5 Blank 6 Z21 Blank 7 Blank 8 722 Blank 9 Blank 10 Blank 11 Blank 12
