3. For the circuit shown in Figure 3, (a) convert the star-connected resistors as shown in the dotted box into an equiva

Post by answerhappygod »

3 For The Circuit Shown In Figure 3 A Convert The Star Connected Resistors As Shown In The Dotted Box Into An Equiva 1
3 For The Circuit Shown In Figure 3 A Convert The Star Connected Resistors As Shown In The Dotted Box Into An Equiva 1 (26.76 KiB) Viewed 12 times

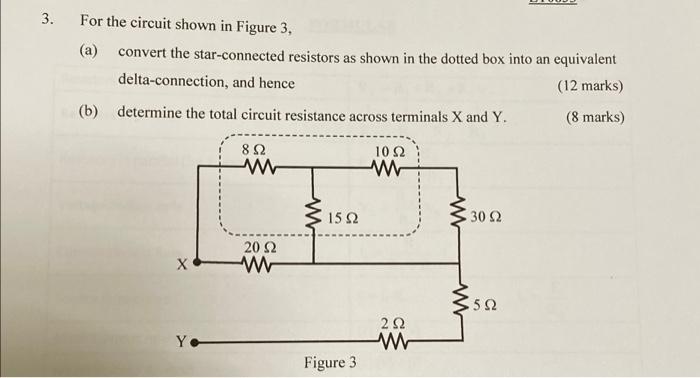

3. For the circuit shown in Figure 3, (a) convert the star-connected resistors as shown in the dotted box into an equivalent delta-connection, and hence (12 marks) (b) determine the total circuit resistance across terminals X and Y. (8 marks) 892 w 102 w w w 1522 w 30 Ω 2022 X 592 w Y 292 w Figure 3
