2(a). By inspection, write the nodal voltage equations for V1, V2 and V3 in matrix form for the network shown in Figure

[answerhappygod]

2 A By Inspection Write The Nodal Voltage Equations For V1 V2 And V3 In Matrix Form For The Network Shown In Figure 1 (30.67 KiB) Viewed 11 times

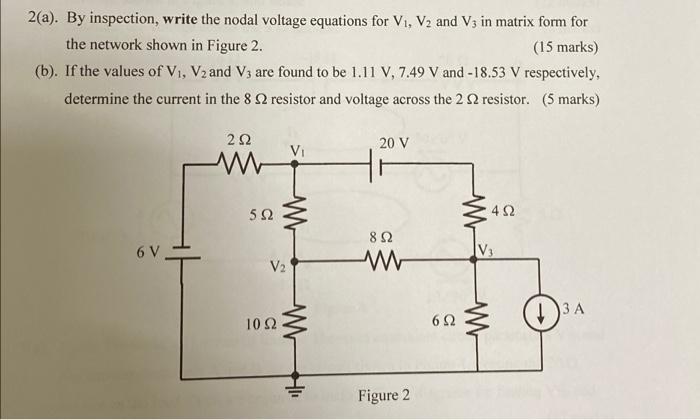

2(a). By inspection, write the nodal voltage equations for V1, V2 and V3 in matrix form for the network shown in Figure 2. (15 marks) (b). If the values of V1, V2 and V3 are found to be 1.11 V, 7.49 V and -18.53 V respectively, determine the current in the 8 resistor and voltage across the 2 resistor. (5 marks) 292 20 V Vi 592 M 492 6 V 82 w V2 M W 3A 10 S2 M 622 Figure 2
