392 12 V 4V (2 marks) 432 A WH Hw 22 w 10 2 1 4 V th 522 12 B Figure 4 5(a). Apply Thevenin's Theorem to find the Theven

[answerhappygod]

392 12 V 4v 2 Marks 432 A Wh Hw 22 W 10 2 1 4 V Th 522 12 B Figure 4 5 A Apply Thevenin S Theorem To Find The Theven 1 (36.25 KiB) Viewed 11 times

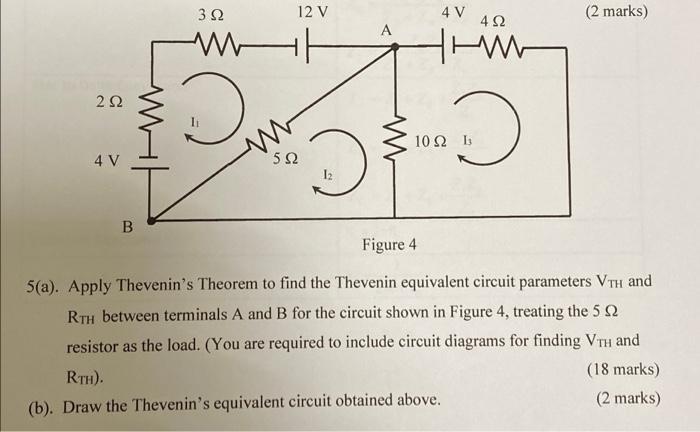

392 12 V 4V (2 marks) 432 A WH Hw 22 w 10 2 1 4 V th 522 12 B Figure 4 5(a). Apply Thevenin's Theorem to find the Thevenin equivalent circuit parameters Vrh and RTH between terminals A and B for the circuit shown in Figure 4, treating the 5 2 resistor as the load. (You are required to include circuit diagrams for finding Vrh and RTH). (18 marks) (b). Draw the Thevenin's equivalent circuit obtained above. (2 marks)
