30. Consider the system shown in Fig. 4.43 with PI control. (a) Determine the transfer function from R to Y. (b) Determi
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
30. Consider the system shown in Fig. 4.43 with PI control. (a) Determine the transfer function from R to Y. (b) Determi

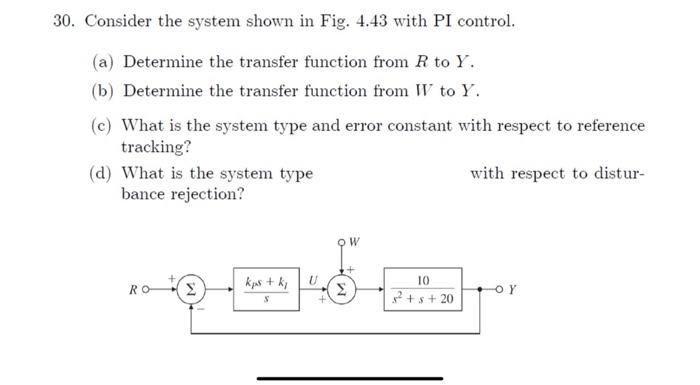

30. Consider the system shown in Fig. 4.43 with PI control. (a) Determine the transfer function from R to Y. (b) Determine the transfer function from W to Y. (c) What is the system type and error constant with respect to reference tracking? (d) What is the system type with respect to distur- bance rejection? OW U RO 10 kostki Σ Σ OY ** 32 + s + 20
