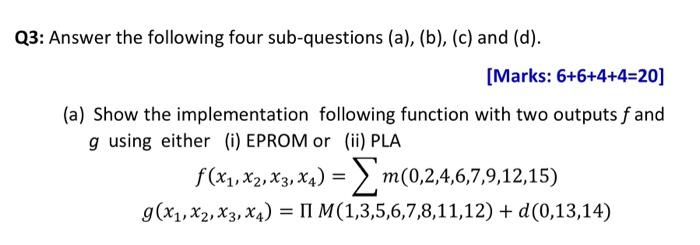

Q3: Answer the following four sub-questions (a), (b), (c) and (d). [Marks: 6+6+4+4=20] (a) Show the implementation following function with two outputs f and g using either (i) EPROM or (ii) PLA f(x1, X2, X3, Xx) = m(0,2,4,6,7,9,12,15) g(x1, X2, X3, x4) = I1 M(1,3,5,6,7,8,11,12) + d(0,13,14)
