Determine the VDS and VGS of the following: AM1 6.122 mA R1 20 W RD 1.1 ΚΩ AM1 3.999 mA BAT: 9V J1 3310 BAT1 12V J1 J310

Post by answerhappygod »

1
1 (37.33 KiB) Viewed 11 times

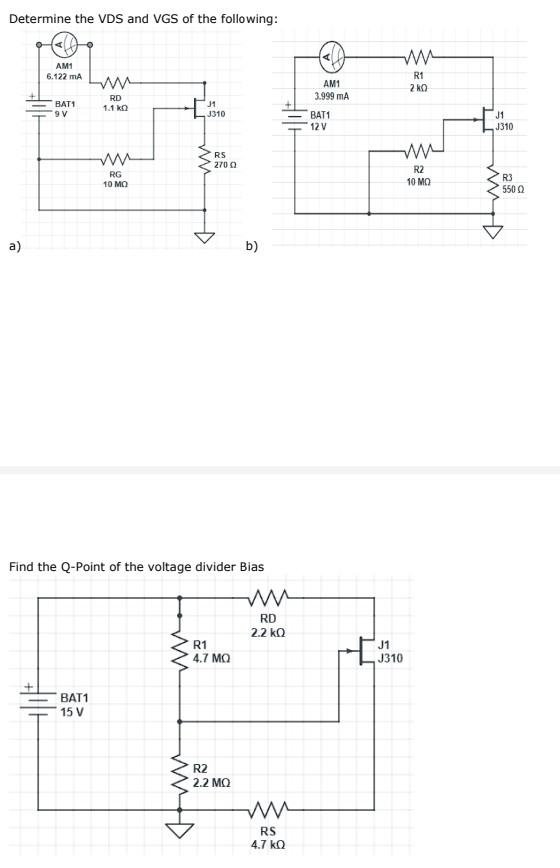

Determine the VDS and VGS of the following: AM1 6.122 mA R1 20 W RD 1.1 ΚΩ AM1 3.999 mA BAT: 9V J1 3310 BAT1 12V J1 J310 W RS 270 RG 10 MO R2 10 MO R3 550 w + a a) b) Find the Q-Point of the voltage divider Bias W RD 2.2kQ R1 4.7 MO J1 J310 W Hilt BAT1 15 V R2 2.2 M2 w RS 4.7 kg
