A 30, Y-connected alternator is rated at 1,600KVA, 13.5KV. The armature effective AC resistance per phase is 1.51. The p

Post by answerhappygod »

A 30 Y Connected Alternator Is Rated At 1 600kva 13 5kv The Armature Effective Ac Resistance Per Phase Is 1 51 The P 1
A 30 Y Connected Alternator Is Rated At 1 600kva 13 5kv The Armature Effective Ac Resistance Per Phase Is 1 51 The P 1 (61.27 KiB) Viewed 15 times

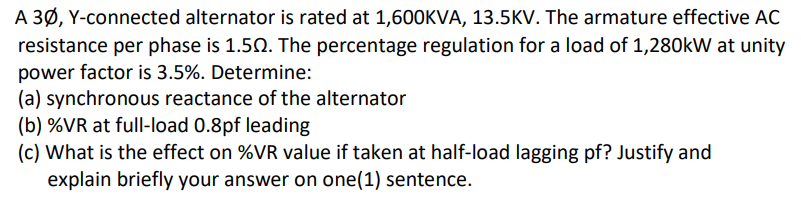

A 30, Y-connected alternator is rated at 1,600KVA, 13.5KV. The armature effective AC resistance per phase is 1.51. The percentage regulation for a load of 1,280kW at unity power factor is 3.5%. Determine: (a) synchronous reactance of the alternator (b) %VR at full-load 0.8pf leading (c) What is the effect on %VR value if taken at half-load lagging pf? Justify and explain briefly your answer on one(1) sentence.
