e) Describe in details the system shown in the Figure 2, including the type of configurations, number of components, whe

[answerhappygod]

E Describe In Details The System Shown In The Figure 2 Including The Type Of Configurations Number Of Components Whe 1 (67.02 KiB) Viewed 105 times

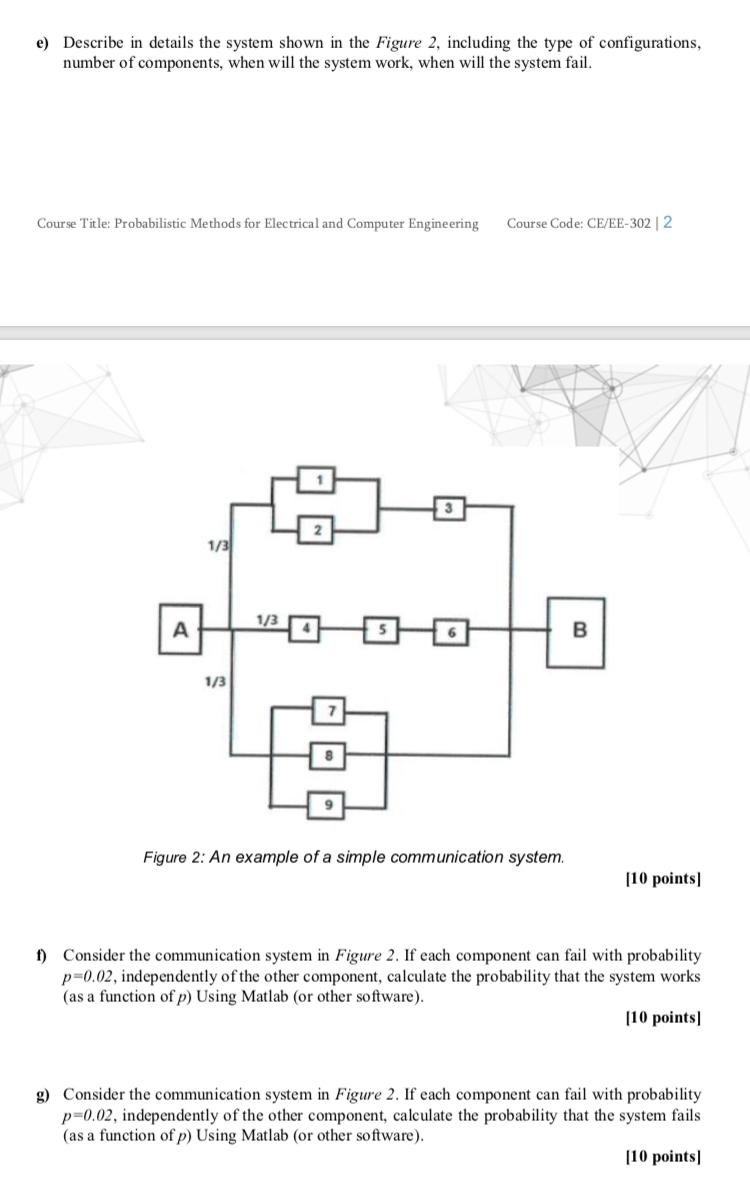

e) Describe in details the system shown in the Figure 2, including the type of configurations, number of components, when will the system work, when will the system fail. Course Title: Probabilistic Methods for Electrical and Computer Engineering Course Code: CE/EE-302 | 2 1/31 A 1/3 Figure 2: An example of a simple communication system. [10 points) 1) Consider the communication system in Figure 2. If each component can fail with probability p=0.02, independently of the other component, calculate the probability that the system works (as a function of p) Using Matlab (or other software). [10 points) g) Consider the communication system in Figure 2. If each component can fail with probability p=0.02, independently of the other component, calculate the probability that the system fails (as a function of p) Using Matlab (or other software). [10 points)
