For the op-amp circuit shown below: Up Un RI 1 is RS IL RL (a) Replace the op amp in the schematic with the model of inp

Post by answerhappygod »

For The Op Amp Circuit Shown Below Up Un Ri 1 Is Rs Il Rl A Replace The Op Amp In The Schematic With The Model Of Inp 1
For The Op Amp Circuit Shown Below Up Un Ri 1 Is Rs Il Rl A Replace The Op Amp In The Schematic With The Model Of Inp 1 (96.56 KiB) Viewed 25 times

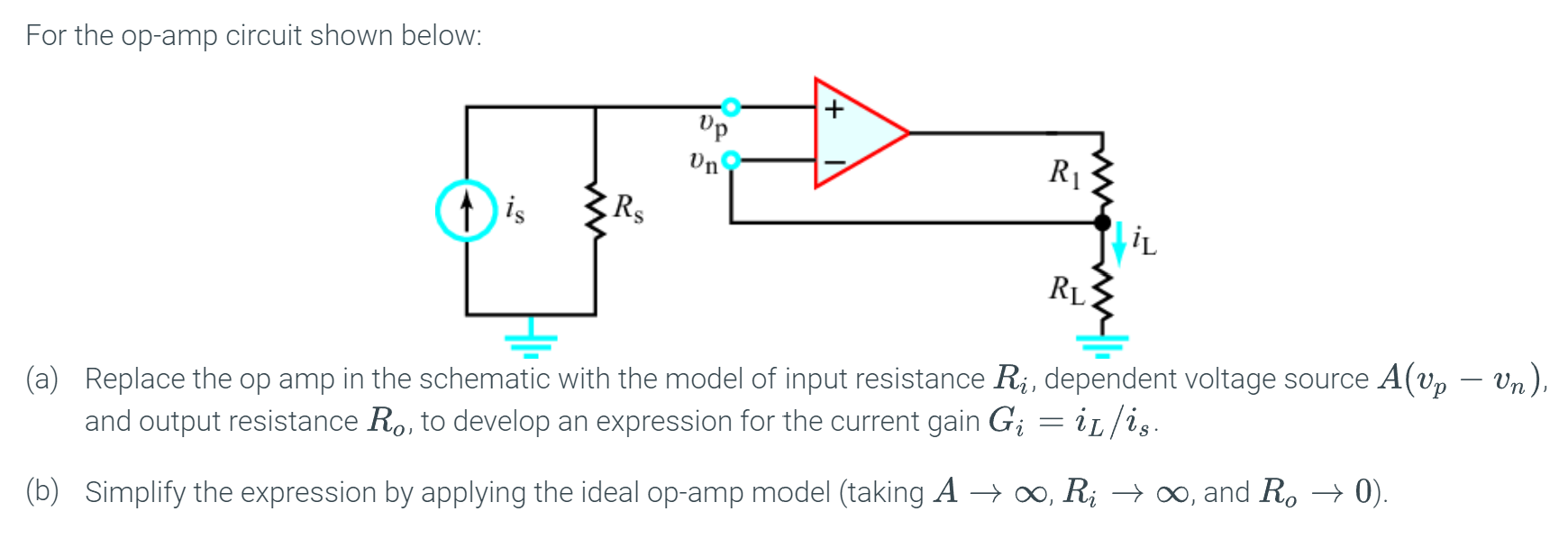

For the op-amp circuit shown below: Up Un RI 1 is RS IL RL (a) Replace the op amp in the schematic with the model of input resistance Ri, dependent voltage source A(Up – vn), and output resistance Ro, to develop an expression for the current gain Gi = illis. (b) Simplify the expression by applying the ideal op-amp model (taking A + Qo, Ri + @o, and R, →0).
