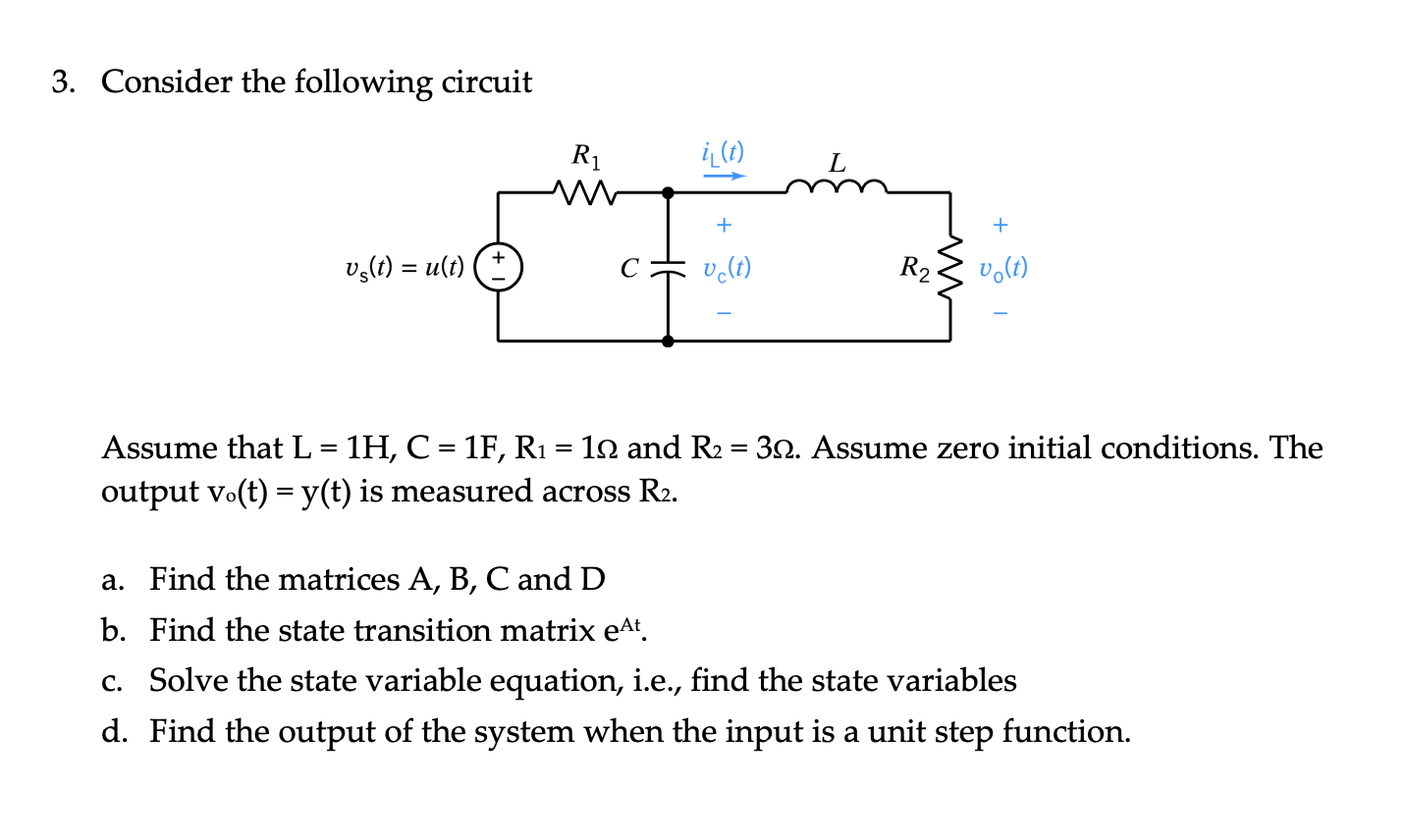

3. Consider the following circuit ij(t) L R1 w + + w vs(t) = u(t) = vc(t) R2 volt) = = = Assume that L = 1H, C = 1F, R1 = 112 and R2 = 32. Assume zero initial conditions. The output vo(t) = y(t) is measured across R2. a. Find the matrices A, B, C and D b. Find the state transition matrix eAt. c. Solve the state variable equation, i.e., find the state variables d. Find the output of the system when the input is a unit step function. a
