- 3 60pt For The Following Two Circuits With The Device Parameters Shown In The Figure 3a Determine The Magnitude A 1 (52.16 KiB) Viewed 14 times
3) (60pt) For the following two circuits with the device parameters shown in the figure -- 3a) Determine the magnitude a
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
3) (60pt) For the following two circuits with the device parameters shown in the figure -- 3a) Determine the magnitude a

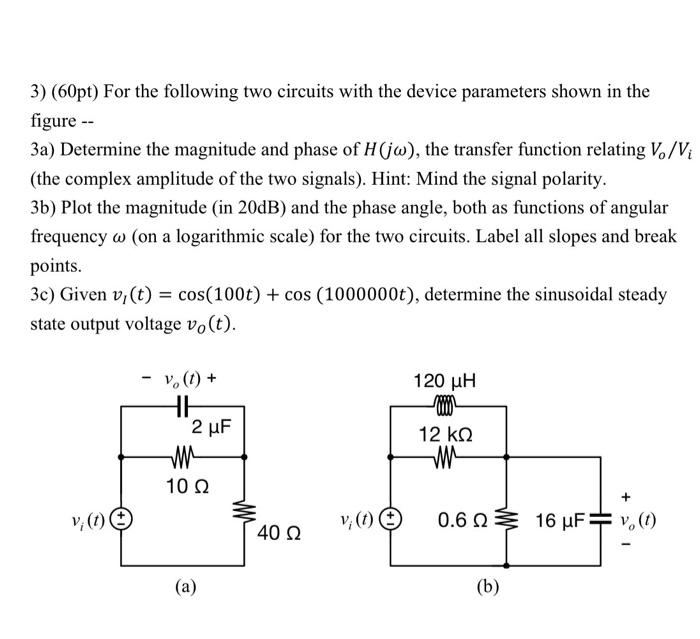

3) (60pt) For the following two circuits with the device parameters shown in the figure -- 3a) Determine the magnitude and phase of H (jw), the transfer function relating V/Vi (the complex amplitude of the two signals). Hint: Mind the signal polarity. 3b) Plot the magnitude (in 20dB) and the phase angle, both as functions of angular frequency w (on a logarithmic scale) for the two circuits. Label all slopes and break points. 3c) Given v,(t) = cos(100t) + cos (1000000t), determine the sinusoidal steady state output voltage vo(t). 120 μΗ v. (1) + HH 2 UF 12 ΚΩ w 1022 v (1) 0.6 23 16 uFv. Ω v; (0) 4022 (1) (a) (b)
