Consider the graph in Figure 2. The voltage vi(t) can be expressed as vy(t) =Vm cos(wit), where Vm is the amplitude of t

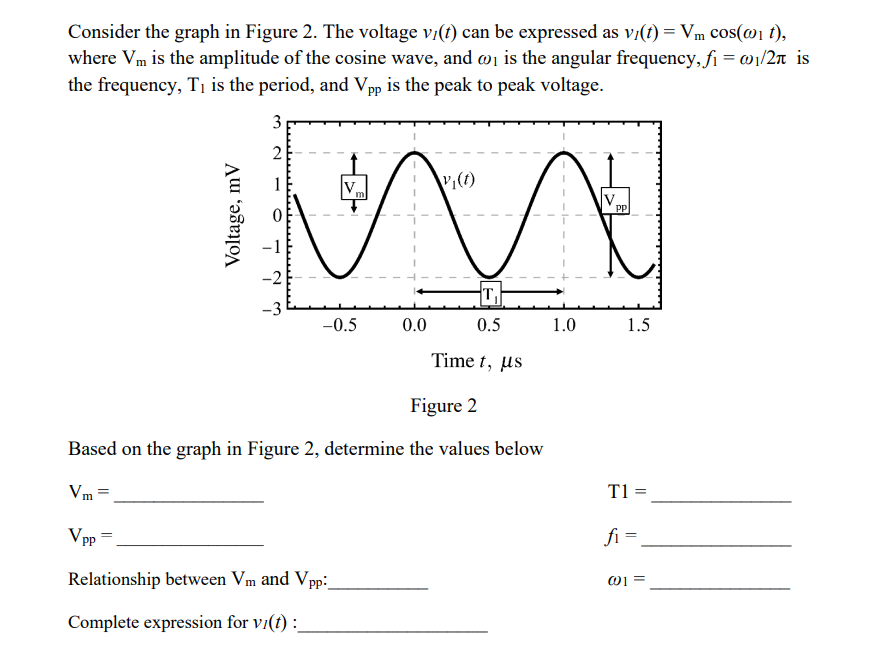

Consider the graph in Figure 2. The voltage vi(t) can be expressed as vy(t) =Vm cos(wit), where Vm is the amplitude of the cosine wave, and oj is the angular frequency, fi = 01/21 is the frequency, T, is the period, and Vpp is the peak to peak voltage. 3 2 N vi(t) V. PP Voltage, mV 0 m - بی ریا T 0.5 -0.5 0.0 1.0 1.5 Time t, us Figure 2 Based on the graph in Figure 2, determine the values below Vm= T1 = Vpp = fi= Relationship between Vm and Vpp: 01 = Complete expression for vi(t):
