Solve the circuit in Figure 1 for Vri, VR2, VR3, I, and Iwith two different methods: 1. By hand. 2. With PSPICE. + VRI-

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Solve the circuit in Figure 1 for Vri, VR2, VR3, I, and Iwith two different methods: 1. By hand. 2. With PSPICE. + VRI-

Post by answerhappygod »

Solve The Circuit In Figure 1 For Vri Vr2 Vr3 I And Iwith Two Different Methods 1 By Hand 2 With Pspice Vri 1
Solve The Circuit In Figure 1 For Vri Vr2 Vr3 I And Iwith Two Different Methods 1 By Hand 2 With Pspice Vri 1 (35.22 KiB) Viewed 14 times

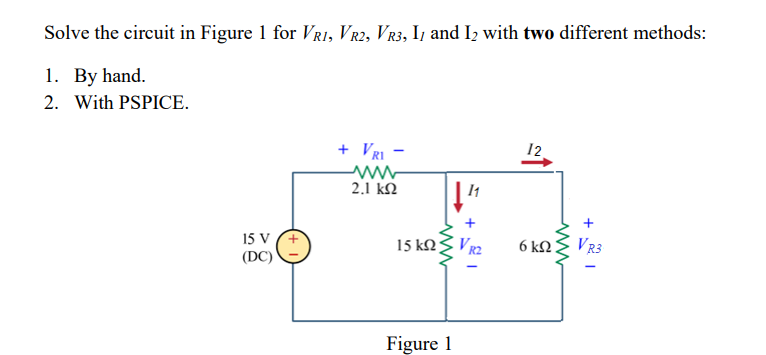

Solve the circuit in Figure 1 for Vri, VR2, VR3, I, and Iwith two different methods: 1. By hand. 2. With PSPICE. + VRI- 12 2.1 k 2 1 11 + + 15 V (DC) 15 k123 VR R2 6 k 2 VR3 Figure 1
