1. For this source voltage, what is the amplitude Vm? What is the peak to peak voltage Vpp? Vm= Vpp = 2. Find vri(t), vr

Post by answerhappygod »

1 For This Source Voltage What Is The Amplitude Vm What Is The Peak To Peak Voltage Vpp Vm Vpp 2 Find Vri T Vr 1
1 For This Source Voltage What Is The Amplitude Vm What Is The Peak To Peak Voltage Vpp Vm Vpp 2 Find Vri T Vr 1 (63.75 KiB) Viewed 11 times

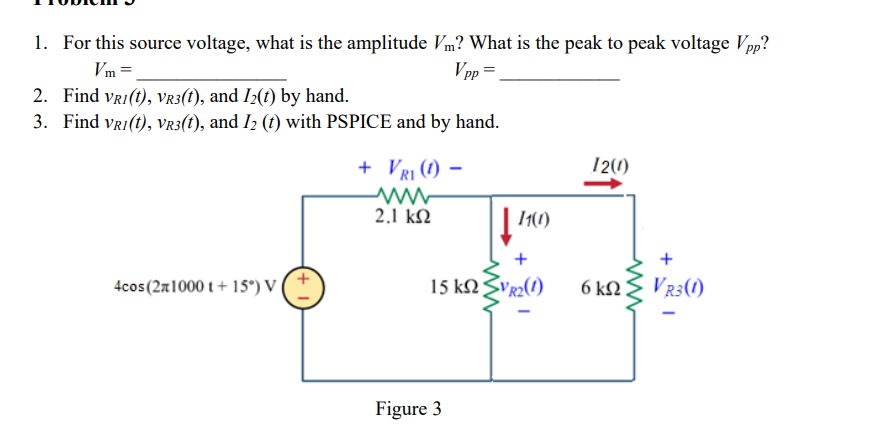

1. For this source voltage, what is the amplitude Vm? What is the peak to peak voltage Vpp? Vm= Vpp = 2. Find vri(t), vr3(t), and Iz(t) by hand. 3. Find vri(t), VR3(t), and 12 (t) with PSPICE and by hand. + VRI) 120 이 2.1 k92 110) + VR30) 4cos (211000 t +15°) V 15 k12 ZVR2(0) 6k92 Figure 3
