5.1 Draw the line diagram for the following bit sequence using a line code that has a good bandwidth efficiency and can

[answerhappygod]

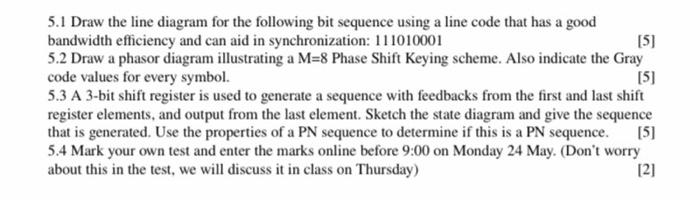

5 1 Draw The Line Diagram For The Following Bit Sequence Using A Line Code That Has A Good Bandwidth Efficiency And Can 1 (27.41 KiB) Viewed 12 times

5.1 Draw the line diagram for the following bit sequence using a line code that has a good bandwidth efficiency and can aid in synchronization: 111010001 [5] 5.2 Draw a phasor diagram illustrating a M=8 Phase Shift Keying scheme. Also indicate the Gray code values for every symbol. [5] 5.3 A 3-bit shift register is used to generate a sequence with feedbacks from the first and last shift register elements, and output from the last element. Sketch the state diagram and give the sequence that is generated. Use the properties of a PN sequence to determine if this is a PN sequence. [5] 5.4 Mark your own test and enter the marks online before 9:00 on Monday 24 May. (Don't worry about this in the test, we will discuss it in class on Thursday) [2]
