response
h(n)=(1/4)^n u(n)
(hint: Use the z-transform)

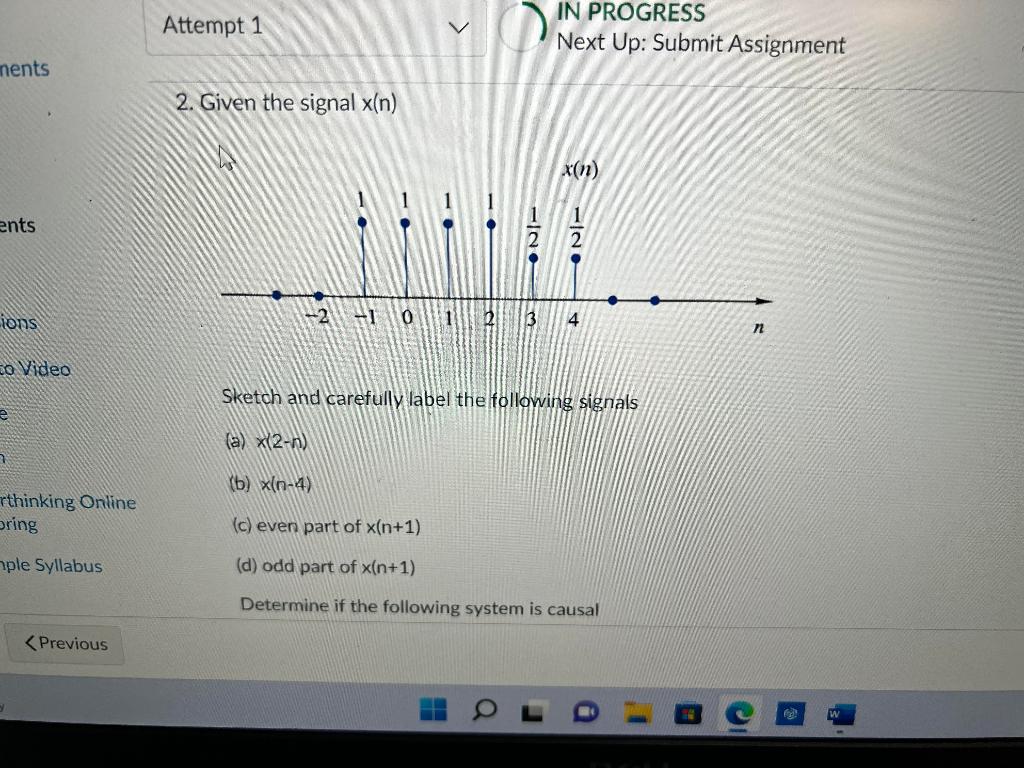

2. Given the signal x(n)
- 1 Determine The Inverse System Of The System With Impulse Response H N 1 4 N U N Hint Use The Z Transform 2 Giv 1 (134.1 KiB) Viewed 18 times
(a) x(2-n)
(b) x(n-4)
(c) even part of x(n+1)
(d) odd part of x(n+1)
Determine if the following system is causal
(e) y(n) = x(2-n)
Determine the magnitude and phase of the Frequency Response
H(ω), for the three-point moving average (MA) system (also known as
Moving Average Filter).
y(n) = 1/4 x(n) + 1/2 x (n-1) + 1/4 x (n-2)
Design an FIR linear-phase, digital filter approximating the
ideal frequency response
Determine the coefficients of a 13-tap filter using the
following windowing methods
(a) rectangular window
(b) Hanning window
Attempt 1 IN PROGRESS Next Up: Submit Assignment nents 2. Given the signal x(n) x(n) ents 2 lons -2 -10 3 4 n o Video Sketch and carefully label the following signals e (a) x(2-n) (b) x(n-4) rthinking Online Bring (c) even part of x(n+1) aple Syllabus (d) odd part of x(n+1) Determine if the following system is causal < Previous
