5. Find a datasheet for the following serial EEPROM IC: 25LC256. Review the datasheet and complete the following questio

Post by answerhappygod »

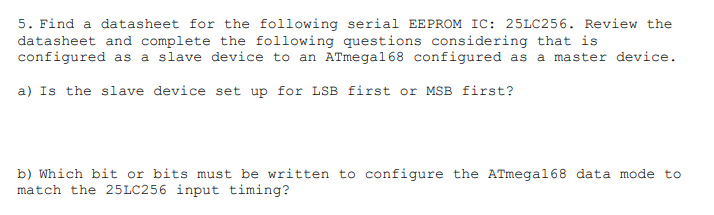

5 Find A Datasheet For The Following Serial Eeprom Ic 25lc256 Review The Datasheet And Complete The Following Questio 1
5 Find A Datasheet For The Following Serial Eeprom Ic 25lc256 Review The Datasheet And Complete The Following Questio 1 (34.41 KiB) Viewed 12 times
5. Find a datasheet for the following serial EEPROM IC: 25LC256. Review the datasheet and complete the following questions considering that is configured as a slave device to an ATmega168 configured as a master device. a) Is the slave device set up for LSB first or MSB first? b) Which bit or bits must be written to configure the ATmega168 data mode to match the 25LC256 input timing?
