Experiment #1: Draw the following circuit using the Pspice shematics editor. RI = IK vin Vout VPULSE CI = Im I Pulse par

[answerhappygod]

Experiment 1 Draw The Following Circuit Using The Pspice Shematics Editor Ri Ik Vin Vout Vpulse Ci Im I Pulse Par 1 (170.86 KiB) Viewed 17 times

use the Pspice program and post the image and responde de question

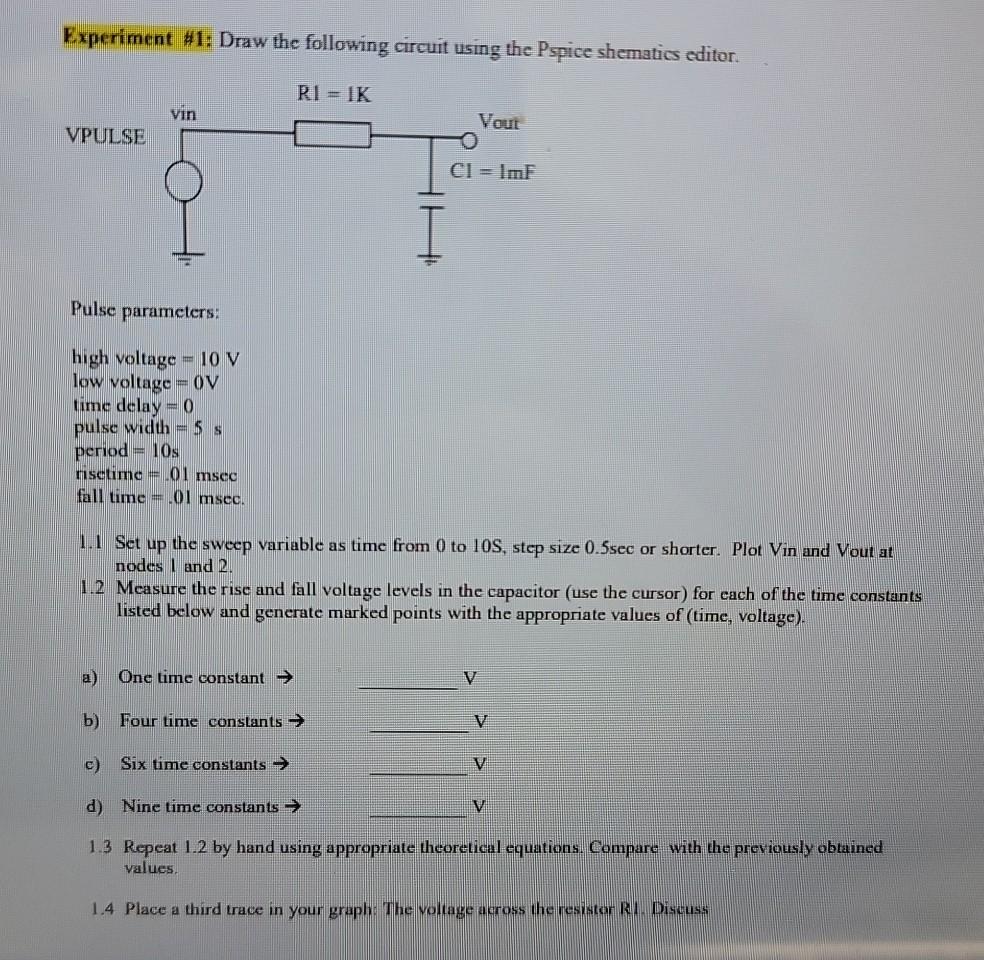

Experiment #1: Draw the following circuit using the Pspice shematics editor. RI = IK vin Vout VPULSE CI = Im I Pulse paramcters: high voltage = 10 v low voltage = 0V time delay = 0 pulse width = $s period = 10s risctime=01 msco fall time = .01 msec. 1.1 Set up the sweep variable as time from 0 to 10S, step size 0.5sec or shorter. Plot Vin and Vout at nodes 1 and 2. 1.2 Measure the rise and fall voltage levels in the capacitor (use the cursor) for each of the time constants listed below and generate marked points with the appropriate values of (time, voltage). a) One time constant → V b) Four time constants → V c) Six time constants → V d) Nine time constants > V 1.3 Repeat 1.2 by hand using appropriate theoretical equations. Compare with the previously obtained values. 1.4 Place a third trace in your graph: The voltage across the resistor R. Discuss
