Consider the following template for a Human Machine Interface (HMI): Top Up Moving Dir Down OC Bottom a Do the following

[answerhappygod]

Consider The Following Template For A Human Machine Interface Hmi Top Up Moving Dir Down Oc Bottom A Do The Following 1 (53.2 KiB) Viewed 10 times

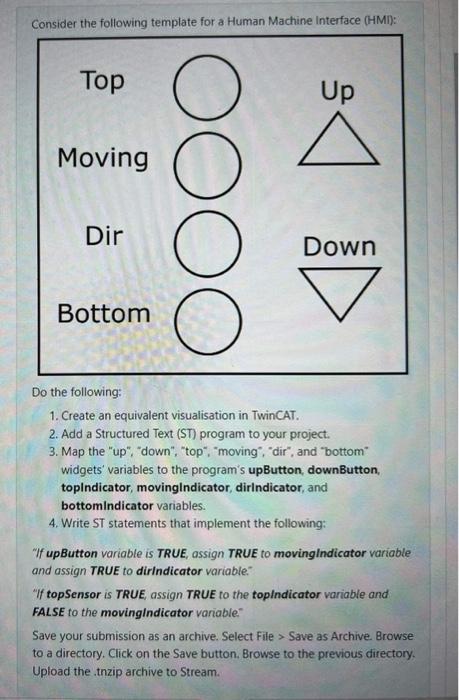

Consider the following template for a Human Machine Interface (HMI): Top Up Moving Dir Down OC Bottom a Do the following: 1. Create an equivalent visualisation in TwinCAT. 2. Add a Structured Text (ST) program to your project. 3. Map the "up","down", "top", "moving, dir", and "bottom widgets' variables to the program's upButton, downButton, toplndicator, movingIndicator, dirindicator, and bottomIndicator variables. 4. Write ST statements that implement the following: "uf upButton variable is TRUE, assign TRUE to movingIndicator variable and assign TRUE to dirindicator variable." "If topSensor is TRUE, assign TRUE to the toplndicator variable and FALSE to the movingIndicator variable Save your submission as an archive. Select File > Save as Archive. Browse to a directory. Click on the Save button. Browse to the previous directory Upload the inzip archive to Stream
