V.(S) Select the correct transfer function of the following circuit: Vi(s) R i(t) any с Vi i(t) V V. V + V.(S) Vi(s) = =

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

V.(S) Select the correct transfer function of the following circuit: Vi(s) R i(t) any с Vi i(t) V V. V + V.(S) Vi(s) = =

Post by answerhappygod »

1
1 (61.3 KiB) Viewed 10 times

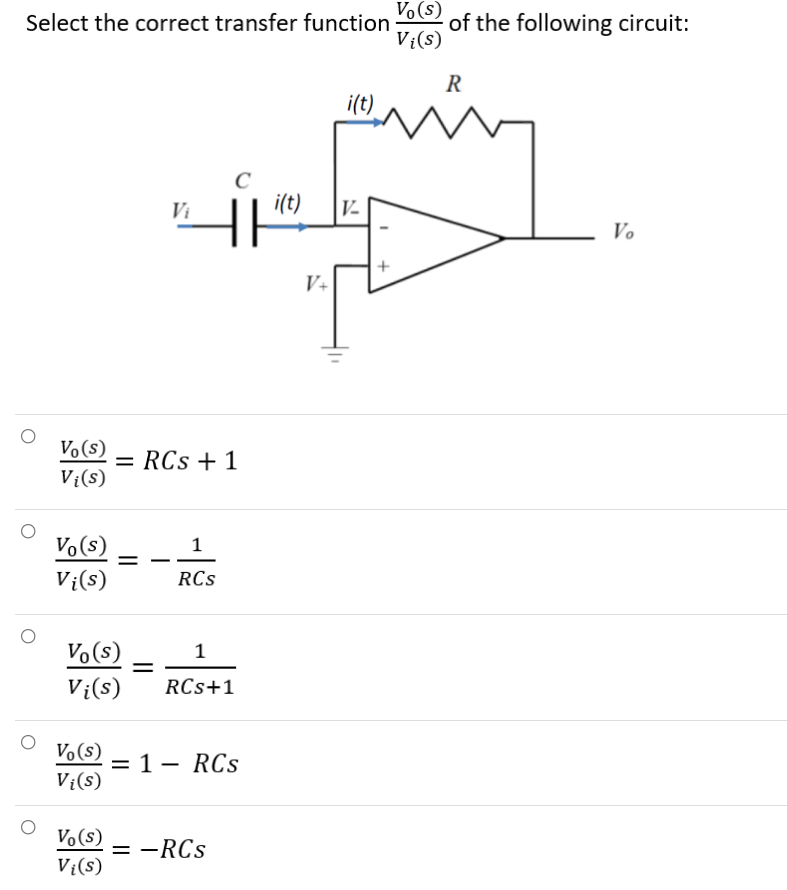

V.(S) Select the correct transfer function of the following circuit: Vi(s) R i(t) any с Vi i(t) V V. V + V.(S) Vi(s) = = RCS + 1 Vo(s) Vi(s) -1 RCs 1 Vo(s) Vi(s) RCs+1 V.(S) Vis) = 1 – RCS V.(s) = -RCS Vis)
