Q7 Design A Combinational Circuit With Three Inputs X Y Z And Three Outputs A B C When The Binary Input Is 4 5 1 (20.43 KiB) Viewed 27 times
send correct answer

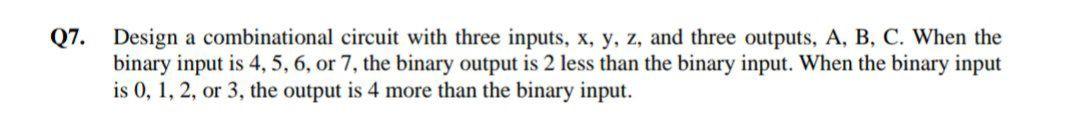

Q7. Design a combinational circuit with three inputs, x, y, z, and three outputs, A, B, C. When the binary input is 4, 5, 6, or 7, the binary output is 2 less than the binary input. When the binary input is 0, 1, 2, or 3, the output is 4 more than the binary input.
