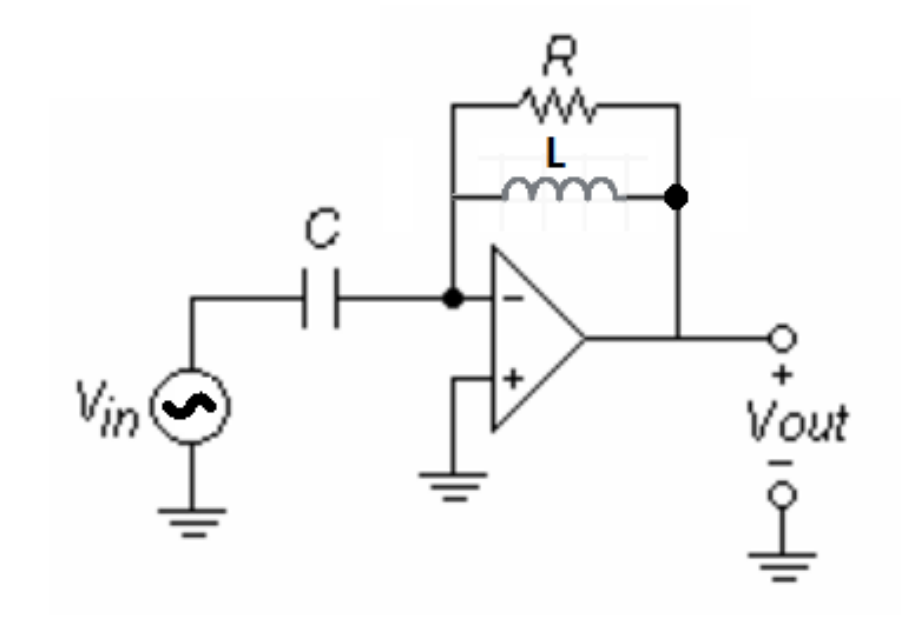

Assume an ideal OP AMP. Vin corresponds to an AC voltage
input.
1. Find a clean algebraic expression for the magnitude of the
frequency response of the following circuit. (Hint: Vout/Vin =
Frequency Response)
2. If R = 1 M𝛀, C = 1uF, L = 5mH, plot the magnitude of the
frequency response of this circuit and frequently describe its
behavior.
(You can make use of some software to graph).
Assume An Ideal Op Amp Vin Corresponds To An Ac Voltage Input 1 Find A Clean Algebraic Expression For The Magnitude O 1 (68.59 KiB) Viewed 31 times
If you could explain the procedure clearly I would
really appreciate it.Thank You
