5. In the circuits shown below, transistors are characterized by IV+] =1 V, K’W/L = 4 mA/V?, and 2 = 0. (a) Find the lab

[answerhappygod]

5 In The Circuits Shown Below Transistors Are Characterized By Iv 1 V K W L 4 Ma V And 2 0 A Find The Lab 1 (119.95 KiB) Viewed 42 times

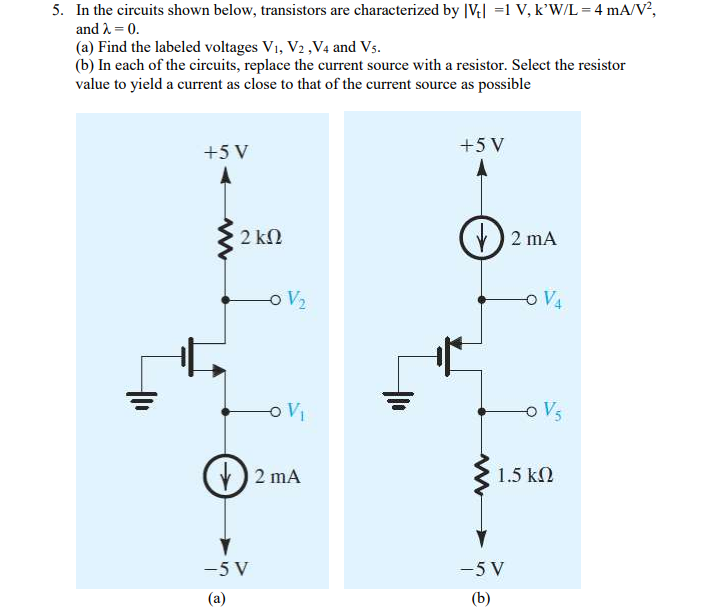

5. In the circuits shown below, transistors are characterized by IV+] =1 V, K’W/L = 4 mA/V?, and 2 = 0. (a) Find the labeled voltages V1, V2,V4 and Vs. (b) In each of the circuits, replace the current source with a resistor. Select the resistor value to yield a current as close to that of the current source as possible +5 V +5V 2 k12 2 mA OV OVA ovi OV 2 mA 1.5 k 2 -5V -5V ( (a) ) (b)
