(c) A simple diode rectifier was tested with an input voltage of 230 V (RMS value). The circuit drew 900 W at an RMS cur

Post by answerhappygod »

C A Simple Diode Rectifier Was Tested With An Input Voltage Of 230 V Rms Value The Circuit Drew 900 W At An Rms Cur 1
C A Simple Diode Rectifier Was Tested With An Input Voltage Of 230 V Rms Value The Circuit Drew 900 W At An Rms Cur 1 (31.4 KiB) Viewed 9 times

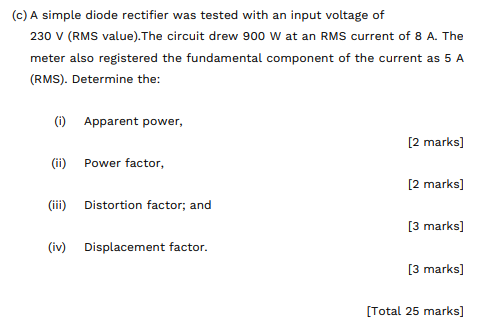

(c) A simple diode rectifier was tested with an input voltage of 230 V (RMS value). The circuit drew 900 W at an RMS current of 8 A. The meter also registered the fundamental component of the current as 5 A (RMS). Determine the: (0) Apparent power, [2 marks] (ii) Power factor, [2 marks] (iii) Distortion factor; and [3 marks] (iv) Displacement factor. [3 marks] [Total 25 marks]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
