Design a 4-bit adder by cascading four full adders like what is shown in figure 1. Use interactive digital constants to

[answerhappygod]

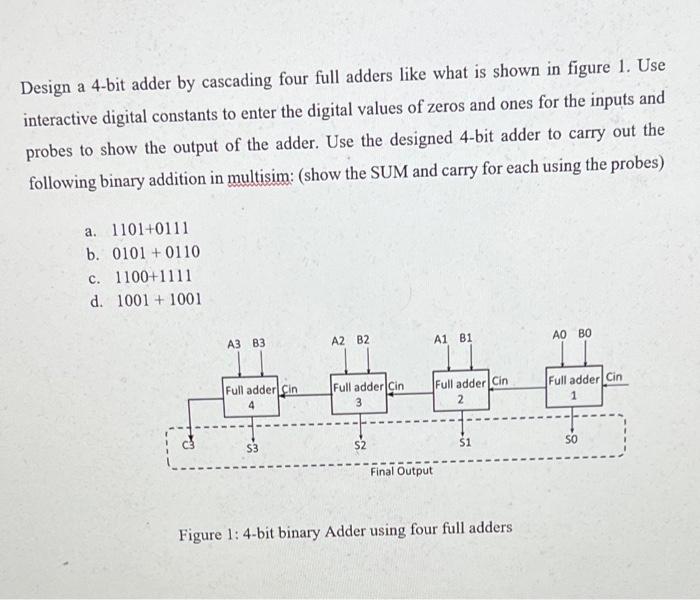

Design A 4 Bit Adder By Cascading Four Full Adders Like What Is Shown In Figure 1 Use Interactive Digital Constants To 1 (53.59 KiB) Viewed 32 times

Design a 4-bit adder by cascading four full adders like what is shown in figure 1. Use interactive digital constants to enter the digital values of zeros and ones for the inputs and probes to show the output of the adder. Use the designed 4-bit adder to carry out the following binary addition in multisim: (show the SUM and carry for each using the probes) a. 1101+0111 b. 0101 + 0110 c. 1100+1111 d. 1001 + 1001 A3 B3 AO BO A2 B2 A1 B1 Full adder in Full adder Cin Full adder|Cin Full adder Cin 1 $1 SO S3 S2 Final Output Figure 1: 4-bit binary Adder using four full adders
