Q-2 Find the ABCD parameters of a transmission line whose resistance is 0.065 O/km while conductance is completely ignor

Post by answerhappygod »

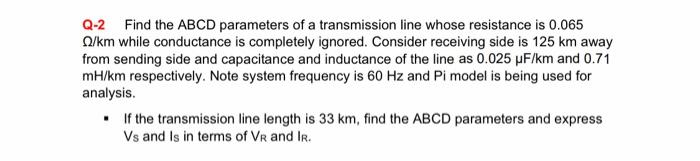

Q 2 Find The Abcd Parameters Of A Transmission Line Whose Resistance Is 0 065 O Km While Conductance Is Completely Ignor 1
Q 2 Find The Abcd Parameters Of A Transmission Line Whose Resistance Is 0 065 O Km While Conductance Is Completely Ignor 1 (21.26 KiB) Viewed 31 times
Q-2 Find the ABCD parameters of a transmission line whose resistance is 0.065 O/km while conductance is completely ignored. Consider receiving side is 125 km away from sending side and capacitance and inductance of the line as 0.025 uF/km and 0.71 mH/km respectively. Note system frequency is 60 Hz and Pi model is being used for analysis. . If the transmission line length is 33 km, find the ABCD parameters and express Vs and is in terms of VR and IR.
