6. An amplifier has a single pole response with a 3-dB frequency of 3 KHz and a unity-gain frequency of 30 60 dB. a) Fin

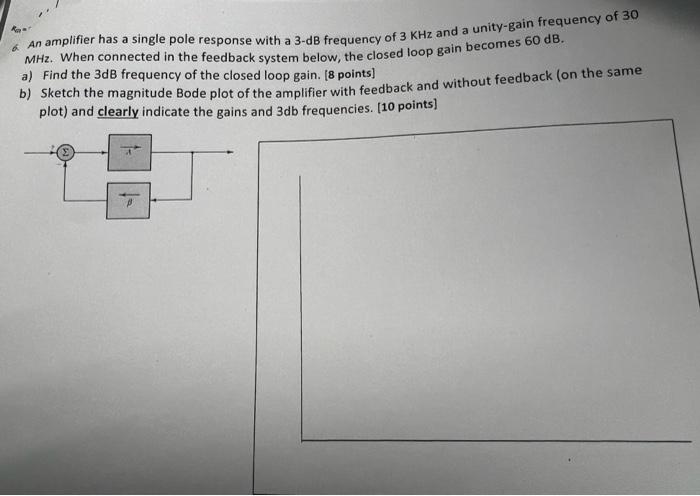

6. An amplifier has a single pole response with a 3-dB frequency of 3 KHz and a unity-gain frequency of 30 60 dB. a) Find the 3dB frequency of the closed loop gain. (8 points] b) Sketch the magnitude Bode plot of the amplifier with feedback and without feedback (on the same plot) and clearly indicate the gains and 3db frequencies. (10 points] -1
