The ABCD constants of a three phase, 200 kV transmission line are: A=D = 0.97156 + j0.00121334 B = 4.025 + j56.947 C = j

Post by answerhappygod »

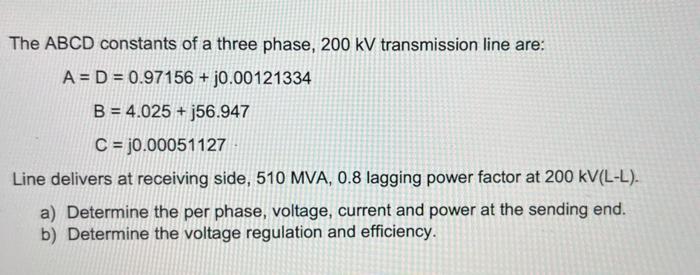

The Abcd Constants Of A Three Phase 200 Kv Transmission Line Are A D 0 97156 J0 00121334 B 4 025 J56 947 C J 1
The Abcd Constants Of A Three Phase 200 Kv Transmission Line Are A D 0 97156 J0 00121334 B 4 025 J56 947 C J 1 (34.97 KiB) Viewed 20 times
The ABCD constants of a three phase, 200 kV transmission line are: A=D = 0.97156 + j0.00121334 B = 4.025 + j56.947 C = j0.00051127 Line delivers at receiving side, 510 MVA, 0.8 lagging power factor at 200 kV(L-L). a) Determine the per phase, voltage, current and power at the sending end. b) Determine the voltage regulation and efficiency.
