Q-3 The ABCD constants of a three phase, 200 kV transmission line are: A = D = 0.97156 + j0.00121334 B = 4.025 + j56.947

Post by answerhappygod »

Q 3 The Abcd Constants Of A Three Phase 200 Kv Transmission Line Are A D 0 97156 J0 00121334 B 4 025 J56 947 1
Q 3 The Abcd Constants Of A Three Phase 200 Kv Transmission Line Are A D 0 97156 J0 00121334 B 4 025 J56 947 1 (62.19 KiB) Viewed 43 times

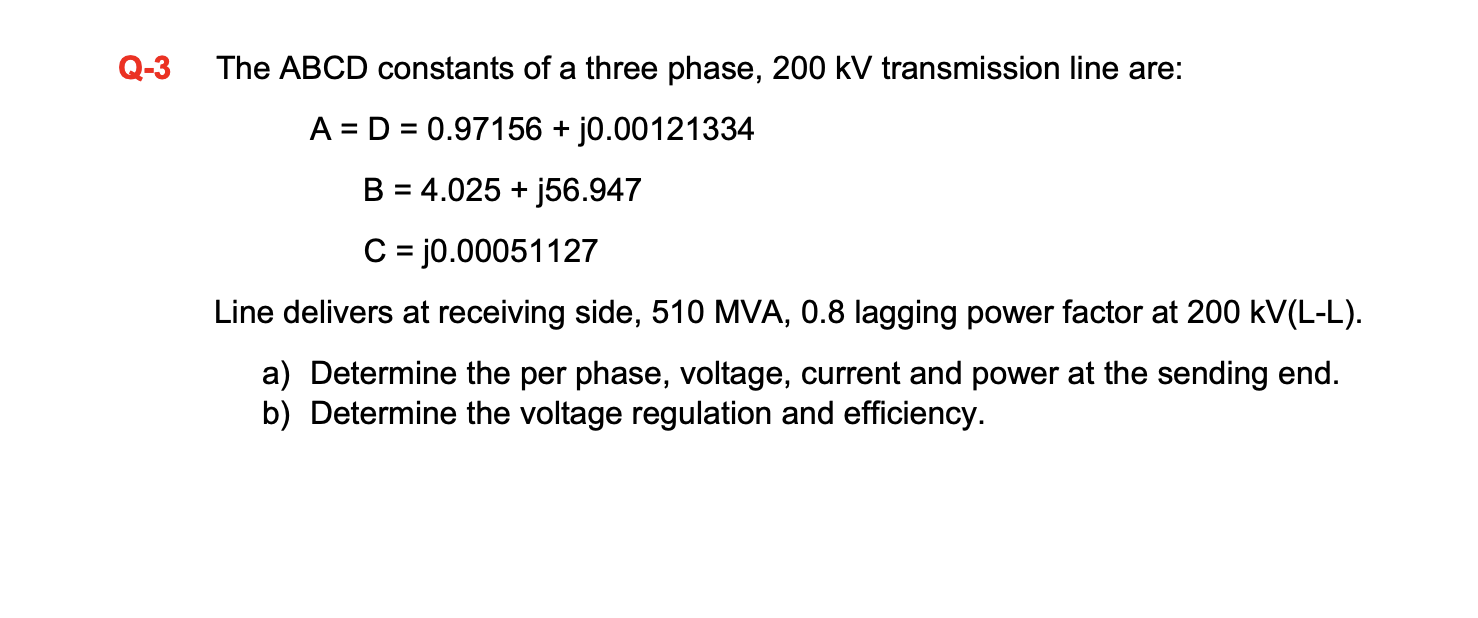

Q-3 The ABCD constants of a three phase, 200 kV transmission line are: A = D = 0.97156 + j0.00121334 B = 4.025 + j56.947 C = j0.00051127 Line delivers at receiving side, 510 MVA, 0.8 lagging power factor at 200 kV(L-L). a) Determine the per phase, voltage, current and power at the sending end. b) Determine the voltage regulation and efficiency.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
