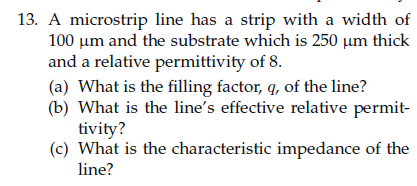

13. A microstrip line has a strip with a width of 100 um and the substrate which is 250 um thick and a relative permittivity of 8. (a) What is the filling factor, q, of the line? (b) What is the line's effective relative permit- tivity? (c) What is the characteristic impedance of the line?
