Question 3 [12 marks] The power radiated, Prad, by a lossless antenna is 10 W. The directional characteristics of the an

Post by answerhappygod »

Question 3 12 Marks The Power Radiated Prad By A Lossless Antenna Is 10 W The Directional Characteristics Of The An 1
Question 3 12 Marks The Power Radiated Prad By A Lossless Antenna Is 10 W The Directional Characteristics Of The An 1 (23.27 KiB) Viewed 51 times

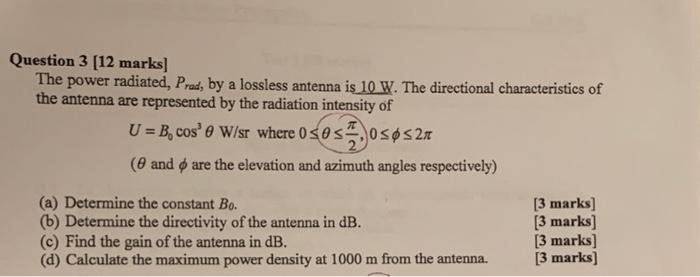

Question 3 [12 marks] The power radiated, Prad, by a lossless antenna is 10 W. The directional characteristics of the antenna are represented by the radiation intensity of U = B, cos'e W/sr where 0 SOS0 SØS2 (0 and are the elevation and azimuth angles respectively) (a) Determine the constant Bo. [3 marks] (b) Determine the directivity of the antenna in dB. [3 marks] (c) Find the gain of the antenna in dB. [3 marks] (d) Calculate the maximum power density at 1000 m from the antenna. [3 marks]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
