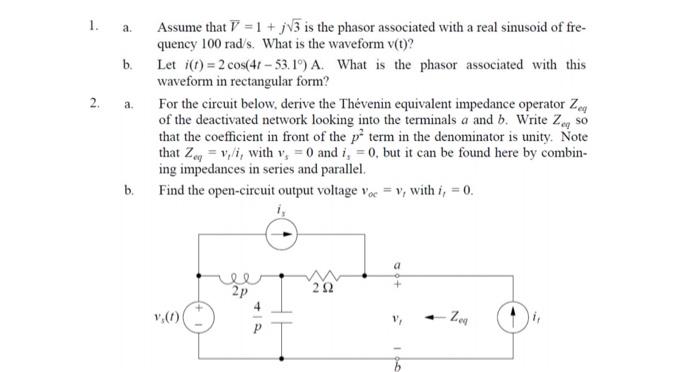

1. a. 2. . Assume that V = 1 + jv3 is the phasor associated with a real sinusoid of fre- quency 100 rad's. What is the waveform v(t)? b. Let i(t) = 2 cos(41 - 53.1°) A. What is the phasor associated with this waveform in rectangular form? a. For the circuit below, derive the Thévenin equivalent impedance operator Zen of the deactivated network looking into the terminals a and b. Write Ze so that the coefficient in front of the p term in the denominator is unity. Note that Zeq = v./i, with v, = 0 and i, = 0, but it can be found here by combin- ing impedances in series and parallel. b. Find the open-circuit output voltage Voc = v, with i, = 0. 2p 4 - Zen
