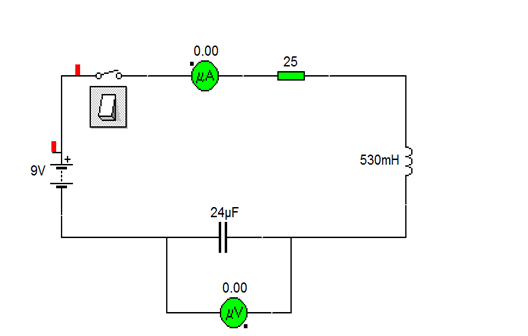

consider the following circuit.
please support with mathematical process and circuit
simulator
Consider The Following Circuit Please Support With Mathematical Process And Circuit Simulator Determine 1 The Value M 1 (15.29 KiB) Viewed 28 times
Determine:
1. The value measured by the ammeter in Direct Current
2. The value measured by the voltmeter in Direct Current
3. The value measured by the ammeter in Alternating Current
4. The value measured by the voltmeter in Alternating
Current
0.00 (UAN 25 530mH 9V 241F H 0.00 AV)
