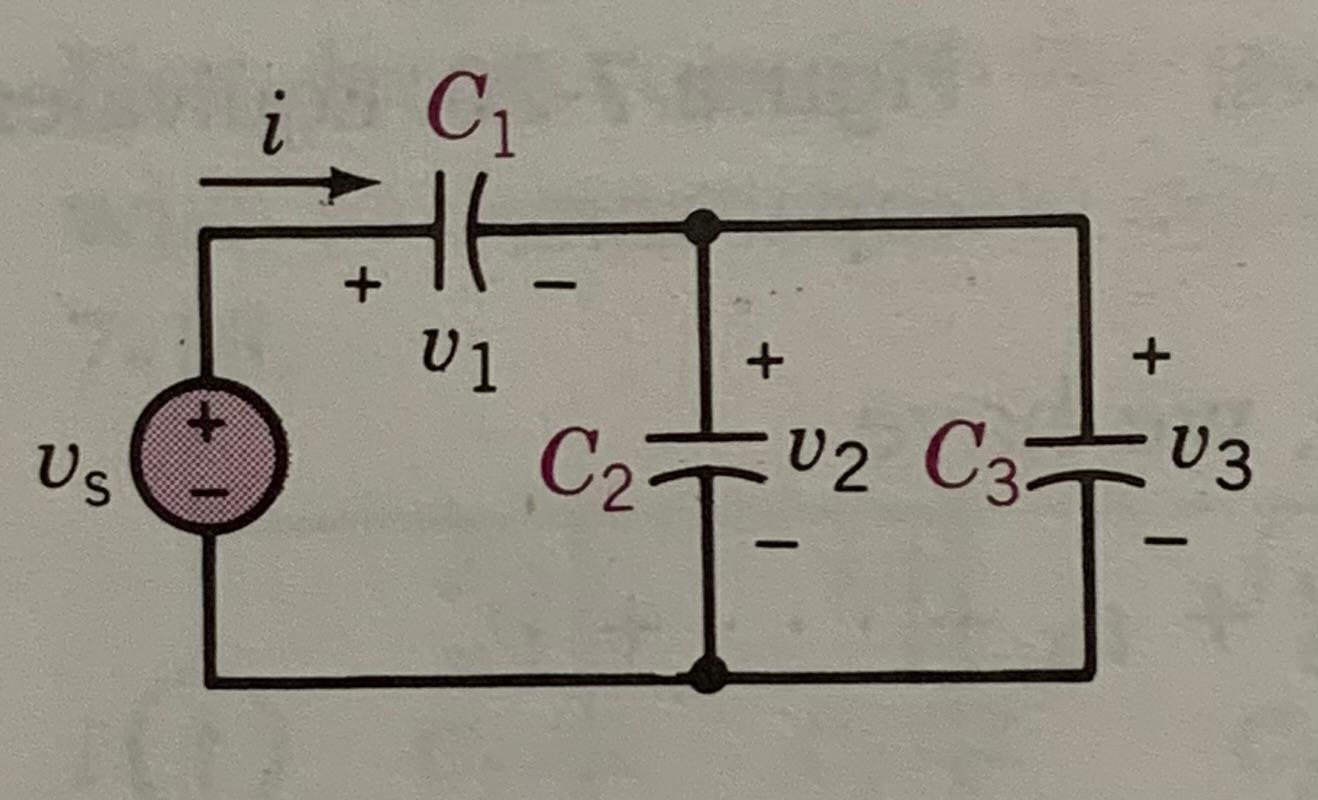

Find the total voltage of the following circuit for t = 0 if
V1(0) = 10V, V2(0) = V3(0) = 20V. (Note: Remember the properties of
series and parallel circuits)
Find The Total Voltage Of The Following Circuit For T 0 If V1 0 10v V2 0 V3 0 20v Note Remember The Prope 1 (93.89 KiB) Viewed 20 times
a.
Vt = 10V
b.
Vt = 20V
c.
Vt = 30V
d.
Vt = 50V
i C1 It + U1 + + Us C2 02 C3 U3
