2. At the instant the switch of figure 2 is closed, the voltage on the capacitor is 0 volts. The resistance of R is 30 K

[answerhappygod]

2 At The Instant The Switch Of Figure 2 Is Closed The Voltage On The Capacitor Is 0 Volts The Resistance Of R Is 30 K 1 (13.65 KiB) Viewed 22 times

2 At The Instant The Switch Of Figure 2 Is Closed The Voltage On The Capacitor Is 0 Volts The Resistance Of R Is 30 K 2 (48.16 KiB) Viewed 22 times

2 At The Instant The Switch Of Figure 2 Is Closed The Voltage On The Capacitor Is 0 Volts The Resistance Of R Is 30 K 3 (48.16 KiB) Viewed 22 times

2 At The Instant The Switch Of Figure 2 Is Closed The Voltage On The Capacitor Is 0 Volts The Resistance Of R Is 30 K 4 (48.13 KiB) Viewed 22 times

2 At The Instant The Switch Of Figure 2 Is Closed The Voltage On The Capacitor Is 0 Volts The Resistance Of R Is 30 K 5 (48.13 KiB) Viewed 22 times

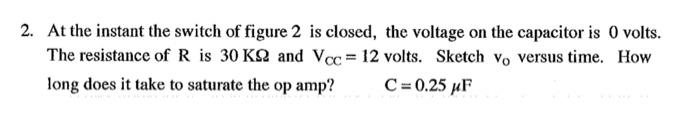

2. At the instant the switch of figure 2 is closed, the voltage on the capacitor is 0 volts. The resistance of R is 30 KQ and Vcc = 12 volts. Sketch vo versus time. How long does it take to saturate the op amp? C=0.25 uf

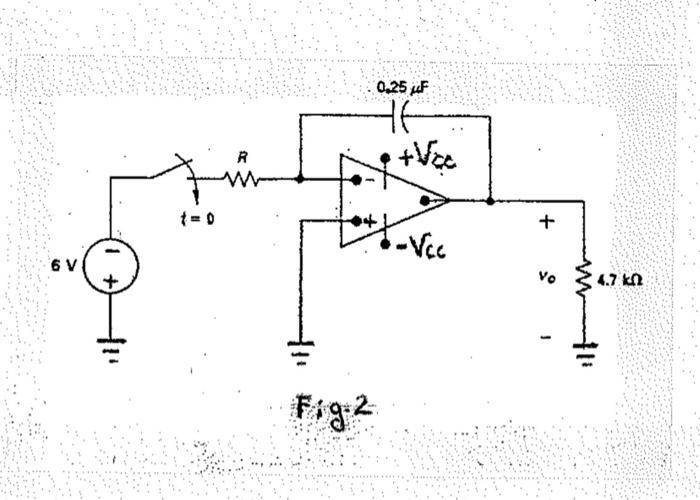

0.25 LF A 76 • the + R w + tot! -Vec 6V VO 4.7 kn KM - 11: Fig.2
0.25 4F A 76 • the # R w 24 + -Vec 6 V VO 4.7 kn - 11: Fig 2
