7. (5 pts.) A 3dB Wilkinson power divider shown below is short-circuited at port 3. The remaining network with port 1 an
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
7. (5 pts.) A 3dB Wilkinson power divider shown below is short-circuited at port 3. The remaining network with port 1 an

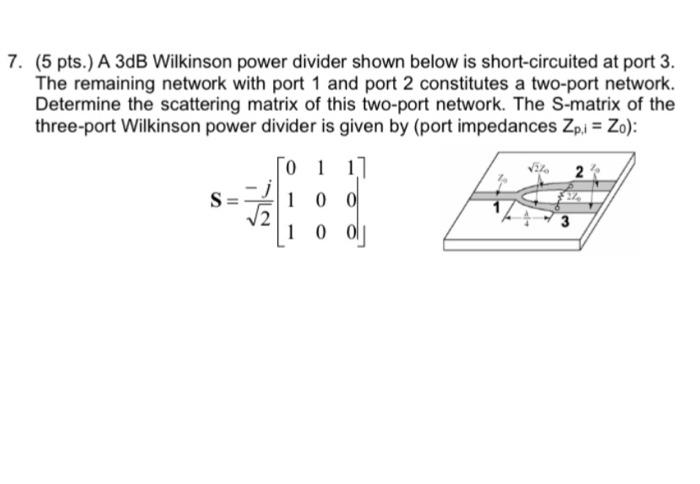

7. (5 pts.) A 3dB Wilkinson power divider shown below is short-circuited at port 3. The remaining network with port 1 and port 2 constitutes a two-port network. Determine the scattering matrix of this two-port network. The S-matrix of the three-port Wilkinson power divider is given by (port impedances Zpi = Zo): TO 1 17 2 S= 1 0 0 2 3 10 = Slu.
